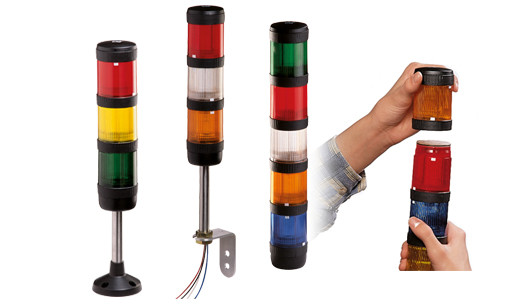

Pfannenberg Br50-L Ba15D Br Signal Towers
BR50-L BA15d 5W Bulb lamp for BA15d socket, 5watt, 230 VAC
Appealing Design 54 mm diameter complements industrial machinery while offering excellent visibility
Modular design with 6 different color elements and 4 mounting methods
The light is amplified by the internal prisms of the impact-proof,heat-resistant and dust-proof polycarbonate lens and can be easily identified from all sides
IP 54 / IP 65 enclosure rating
Tubular stand or bracket with various tube lengths, or direct to enclosure
Self-monitoring module
Simple Integration to the AS-i interface BUS system for up to 4 stages or 62 master/slave connections.
Appealing Design 54 mm diameter complements industrial machinery while offering excellent visibility
Modular design with 6 different color elements and 4 mounting methods
The light is amplified by the internal prisms of the impact-proof,heat-resistant and dust-proof polycarbonate lens and can be easily identified from all sides
IP 54 / IP 65 enclosure rating
Tubular stand or bracket with various tube lengths, or direct to enclosure
Self-monitoring module
Simple Integration to the AS-i interface BUS system for up to 4 stages or 62 master/slave connections.
- Mounting Style:
- Attaches to Module
- Lens Color:
- Clear
- Material:
- polycarbonate (PC)
- MAX ENVIRONMENTAL PROTECTION STANDARD:
- IP 65
- OPERATING VOLTAGE RANGE:
- 230VAC
- BULB TYPE:
- Incandescent (Seperately Purchased)
- LIGHT INTENSITY:
- 10 cd
- Approx SERVICE LIFE OF LIGHT SOURCE:
- 1,500 hrs
- APPROVALS:
- UL, EAC
- WEIGHT (lbs):
- 0.04408
- Width (in):
- 0.196850393700787
- Height (in):
- 2.16535433070866
- Depth (in):
- 2.16535433070866
- MINIMUM OPERATING TEMPERATURE (??C):
- -35 C
- MAXIMUM OPERATING TEMPERATURE ( ??C):
- 45 C
