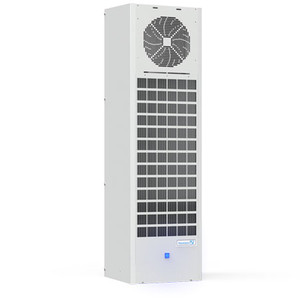

Pfannenberg Dts 3141 Indoor Enclosure Cooling Unit
- SKU:
- 13385436251
- Condition:
- New
- Cooling Capacity (Btu/h):
- 3000-4000
- Mounting Style:
- Side Mount
- Color:
- ANSI 61 (Dark Grey)
- Material:
- Powder Coated Steel
- Environmental Protection Standard:
- Type 12
- Voltages:
- 400/460 V
- Voltage Tolerance:
- ?? 10%
- Frequency (Hz):
- 50/60Hz
- Power Consumption (W):
- 1200
- Nominal (Run) Current (@35A/35A):
- 2.25
- Fuse (max.) Class CC:
- 4
- Max Noise Level dB(A):
- 70
- Approvals:
- UL, cUL, CE, (on request: GOST)
- Width (in):
- 15.55
- Height (in):
- Width (in)=15.55""
- Depth (in):
- 9.3
- Minimum Ambient Temperature (??F / ??C):
- 59??F / 15??C
- Maximum Ambient Temperature (??F / ??C):
- 131??F / 55??C
- Control Range (adjustable) SC:
- + 77??F ?à + 113??F / + 25??C ?à + 45??C; factory setting + 95??F / + 35??C
- Refrigerant (Type/Quantity):
- R134a/400g
- Condensate Management:
- active condensate evaporation system with safety overflow
Description
American Made
Designed with a long internal air path to capture heat above the components and provide cool air below
Single bearing fan design provides long lasting, high airflow vs typical two bearing designs
Closed loop design that isolates contaminated external ambient air from the internally conditioned air
Thermal overload protection for increased operating life of the compressor
Pressure overload protection safely shuts off the compressor in the event of excessive pressure
Environmentally friendly with R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment
Greater efficiency and less maintenance due to the condensor's wide fin spacing filterless design
Active condensate management boils off condensate in a heated condensate collection pan
Hermetically sealed compressor never needs recharging
Outdoor and washdown units have a special coating for superior corrosion protection especially with salt water, sour gas & other corrosive gases
Thermal expansion valve provides efficient performance over the entire operating temperature range by regulating the flow of refrigerant
ERP efficiency certified
High ambient cooling performance in environments where the maximum ambient temperature is 131?? F
Rugged Design
Industrial automation enclosures, Electrical control cabinet, Pump panel, Standalone data rack,
