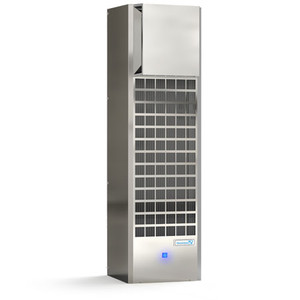

Pfannenberg Dts 3285 Washdown Enclosure Cooling Unit
- SKU:
- 13383836158
- Condition:
- New
- Cooling Capacity (Btu/h):
- 10000-13000
- Mounting Style:
- Side Mount
- Color:
- 304 Stainless Steel
- Material:
- Stainless Steel
- Environmental Protection Standard:
- Type 4/4x
- Voltages:
- 400/460 V
- Voltage Tolerance:
- ?? 10%
- Frequency (Hz):
- 50/60Hz
- Power Consumption (W):
- 1700
- Nominal (Run) Current (@35A/35A):
- 3.14
- Fuse (max.) Class CC:
- 6
- Max Noise Level dB(A):
- 73
- Approvals:
- UL, cUL, CE, (on request: GOST)
- Width (in):
- 16
- Height (in):
- Width (in)=16""
- Depth (in):
- 11.9
- Minimum Ambient Temperature (??F / ??C):
- 32??F / 0??C
- Maximum Ambient Temperature (??F / ??C):
- 131??F / 55??C
- Control Range (adjustable) SC:
- + 77??F ?à + 113??F / + 25??C ?à + 45??C; factory setting + 95??F / + 35??C
- Refrigerant (Type/Quantity):
- R134a/1200g
- Condensate Management:
- active condensate evaporation system with safety overflow
Description
American Made
One of the most popular and versatile cooling units
Closed loop design that isolates contaminated external ambient air from the internally conditioned air
Single bearing design provides long lasting, high airflow vs typical two bearing designs
Pluggable power connection eliminates need to open the chassis
Easy access electrical control panel
Microchannel Condensor for increased efficency and durability
Hermetically sealed compressor never needs recharging
Pressure overload protection safely shuts off the compressor in the event of excessive pressure
Thermal overload protection for increased operating life of the compressor
Environmentally friendly with R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment
Active condensate management boils off condensate in a heated condensate collection pan
Lifting lug ports to accomodate safe installation
Thermal expansion valve provides efficient performance over the entire operating temperature range by regulating the flow of refrigerant
ERP efficiency certified
High ambient cooling performance in environments where the maximum ambient temperature is 131?? F
Rugged Design
Industrial automation enclosures, Electrical control cabinet, Pump panel, Standalone data rack,
