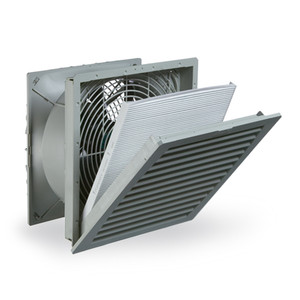

Pfannenberg Pf 66000 Filterfan Thermal Management Filter Fan-Indoor
Pfannenberg
$595.00
PF 66000 Filterfans 4.0?Ö- 13 in X 13 in, Standard Side Mount, 115 VAC, Light Grey (RAL 7035), 462 CFM, Type 12
Fluted type filter provides 3X longer life before clogging
Tool-less quick install design for all NEMA enclosure wall thickness (steel, fiberglass, polycarbonate)
Uses best in class fans for superior airflow(CFM) and service life
Available in multiple voltage (AC/DC), sizes and color options
Typical Applications: Industrial automation enclosures, Electrical control cabinet, Pump panel, Standalone data rack,
- Mounting Style:
- Side Mount
- Color:
- Light Gray (RAL 7035)
- Material:
- self-extinguishing, UL 94 VO injection-molded thermoplastic
- Environmental Protection Standard:
- Type 12 - standard filter
- Voltages:
- 115 V
- Voltage Tolerance:
- +/- 10%
- Frequency:
- 60Hz
- Power Consumption (W):
- 160
- SERVICE LIFE L10 (+ 40 ??C):
- 40,000 h
- NOISE LEVEL (EN ISO 3741):
- 64 dB (A)
- CONNECTION TYPE:
- spring-type terminal
- BEARING TYPE:
- ball bearing
- APPROVALS:
- UL, cUL, CE, (on request: GOST)
- WEIGHT (lb):
- 7
- NOMINAL SIZE:
- 13 in
- Width (in):
- 12.6
- Height (in):
- 12.6
- Depth (in):
- 6.18
- CUT-OUT DIMENSIONS (mm):
- 291 x 291
- CUT-OUT DIMENSIONS (in):
- 11.46 x 11.46
- UNIMPEDED AIRFLOW:
- 462 CFM
- FAN AND EXHAUST AIRFLOW:
- 295 CFM
- FILTER MAT QUALITY CLASS:
- G4 Fluted Polyester
- FILTRATION EFFICIENCY:
- 0.91
