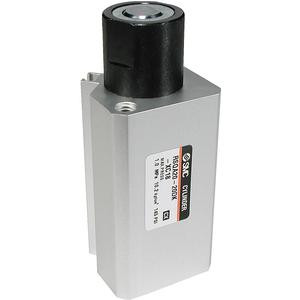

SMC RSQA50-30BZ RSQ-Z Stopper Cylinder, Fixed Mounting Height, 50mm Bore, 30mm Stroke, Double Acting, Spring Loaded, Round Bar
SMC
$80.35
SMC RSQA50-30BZ RSQ-Z Fixed Mounting Height Stopper Cylinder
The SMC RSQA50-30BZ is a fixed mounting height RSQ-Z stopper cylinder with a 50mm bore, 30mm stroke, double acting, spring loaded operation, and a round bar rod end. Stopper cylinders rise into the path of a conveyor to stop and position workpieces or pallets, then retract to release them.
Specifications
| Series | RSQ-Z |
| Type | Fixed Mounting Height Stopper Cylinder |
| Bore Size | 50mm |
| Stroke | 30mm |
| Action | Double Acting, Spring Loaded |
| Rod End | Round Bar |
| Body Mounting | Both Ends Tapped |
| Port Thread | Rc |
| Weight | 2.34 lb |
RSQ-Z Series Highlights
- Ten rod end configurations, including round bar, chamfered, roller, and fixed or adjustable absorber lever styles, so the stopper can match the workpiece and line speed
- Body accepts auto switches on four faces, and compact auto switches mount without separate mounting brackets
- Lever-style shock absorbers are replaceable by loosening a set screw, which keeps maintenance downtime short
- Through-hole or both-ends-tapped body mounting
- Mounting interchangeable with the earlier RSQ series (16 to 50mm bore)
Need help confirming a part number, auto switch, or replacement? Contact Automation Distribution and our team will help.
- Series:
- RSQ-Z
- Bore Size:
- 50mm
- Cylinder Stroke:
- 30mm
- Action:
- Double Acting with Spring Loaded
- Piston rod end type:
- Round Bar
- Mounting Style:
- Both Ends Tapped
- Port Thread Type:
- Rc
- With Auto Switch(Built-in Magnet):
- No
- Auto Switch:
- None
- Number Of Auto Switches:
- None
- Mounting Bolt:
- None
- Made To Order:
- Standard
- Water Resistant Cylinders:
- No
- Compatible With Secondary Batteries:
- No
