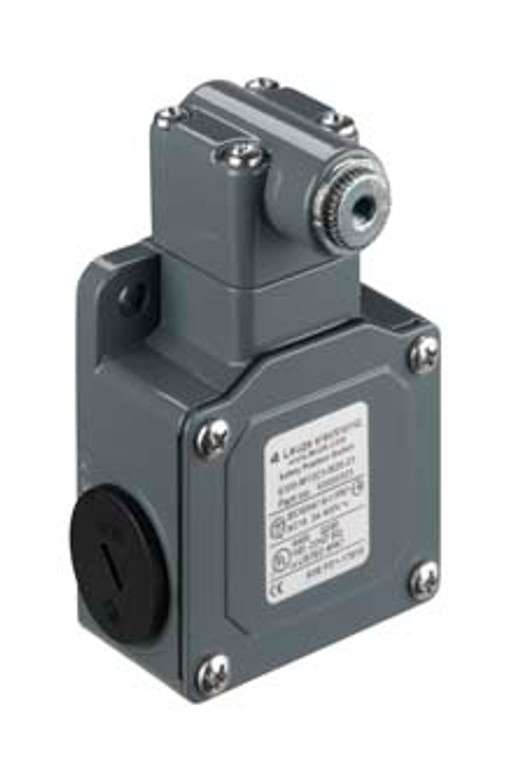

S300-M13C3-M20-CB Safety position switch
- Series:
- S300
- Functions:
- Integration in control circuits up to category4 in accordance with EN ISO 13849-1,Locking device without guard interlocking according to EN ISO 14119
- Mission time:
- 20 years, EN ISO 13849-1
- B10d:
- 40,000,000 number of cycles
- Usage category at DC 13:
- Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
- Usage category at AC 15:
- Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
- Contact allocation:
- 2NC + 1NO
- Contact opening:
- Force-fit
- Short circuit protected:
- 500 V, 10 A, type aM, IEC 60269-1
- Contact protection:
- Earthing
- Rated insulation voltage:
- 400 V AC, 500 V DC
- Conventional thermal current, max.:
- 10 A
- Number of connections:
- 1 Piece(s)
- Number of cable entries:
- 3 Piece(s)
- Function:
- Contact connection
- Type of connection:
- Terminal
- Type of terminal:
- Screw terminal
- No. of pins:
- 6 -pin
- Connection cross sections:
- 1 x 0.34 mm² to 2 x 1.5 mm², wire
- Design:
- Cubic
- Dimension (W x H x L):
- 56 mm x 33 mm x 88 mm
- Housing material:
- Metal
- Metal housing:
- ZAMAK
- Electrical contact material:
- Silver alloy
- Net weight:
- 263 g
- Housing color:
- Gray
- Type of fastening:
- Through-hole mounting
- Type of cable entry:
- M20 x 1.5
- Switch type:
- Interlock device without guard interlocking, ISO 14119
- Switching principle:
- Slow-action contact
- Switching direction:
- Both sides,One side
- Approach actuation directions:
- 4 x side (90°),360°
- Approach speed:
- Depending on actuator used
- Mechanical life time:
- 20,000,000 actuation cycles, IEC 60947-5-1
- Actuation frequency, max.:
- 3,600 per hour, IEC 60947-5-1
- Actuator mount:
- Short
- Ambient temperature, operation:
- -25 ... 80 °C
- Degree of contamination:
- 3, EN 60947-1
- Degree of protection:
- IP 67
- Approvals:
- IMQ,c UL US
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27272601
- ECLASS 8.0:
- 27272601
- ECLASS 9.0:
- 27272601
- ECLASS 10.0:
- 27272601
- ECLASS 11.0:
- 27272601
- ECLASS 12.0:
- 27272601
- ECLASS 13.0:
- 27272601
- ECLASS 14.0:
- 27272601
- ECLASS 15.0:
- 27272601
- ETIM 5.0:
- EC000030
- ETIM 6.0:
- EC000030
- ETIM 7.0:
- EC000030
- ETIM 8.0:
- EC000030
- ETIM 9.0:
- EC000030
- ETIM 10.0:
- EC000030
