Schmalz

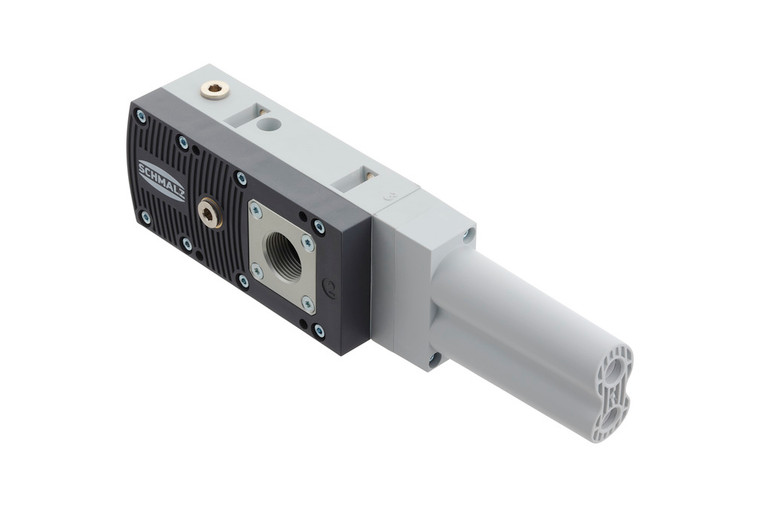

Schmalz SBPL-50-HV Basic ejector with maximum suction capacity

SKU:

10.02.01.01590

UPC:

MPN:

SBPL-50-HV

Condition:

New

Size:

50

Degree of evacuation:

90 %

Max. vacuum:

900 mbar

Suction rate (real):

510 l/min

Suction rate (theo):

660 l/min

Suction rate (real):

30.60 m³/h

Suction rate (theo):

39.60 m³/h

Air consumption suction:

210 l/min

Air consumption suction:

13 m³/h

Sound level free:

66 dB(A)

Sound level suction:

59 dB(A)

Pressure range (operating pressure):

2.0 ... 6.0 bar

Pressure range (operating pressure):

29.0 ... 87.0

Recomm. internal hose diameter compressed air:

6 mm

Recomm. internal hose diameter vacuum:

25 mm

Weight:

0.75 kg

Operating temperature:

0 ... 60 °C

Max. vacuum:

26.58 inHg

Product family:

SBPL

Datasheet:

View
