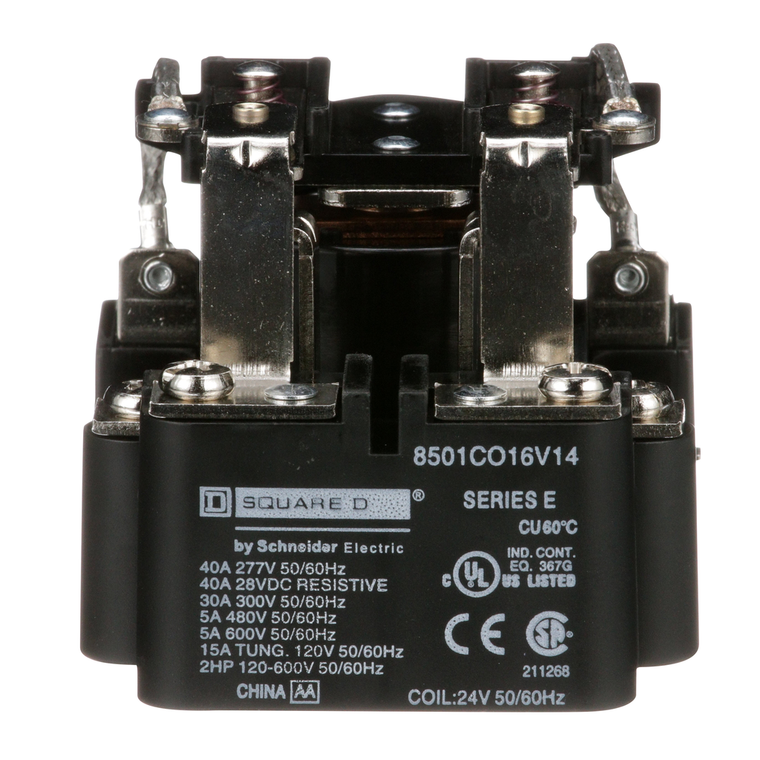

Schneider Electric 8501CO16V14 Relay 600Vac 5Amp Type C +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501CO16V14 Relay 600Vac 5Amp Type C +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501CO16V14

UPC:

785901052128

MPN:

Condition:

New

Device Application:

suited for controlling small single phase motors and other light loads

Maximum Switching Voltage:

600 V AC

Product Certifications:

UL listed file E78351 CCN NLDX || CSA || CE

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP1705008EN

Product Or Component Type:

power relay

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Awg Gauge:

AWG 10 copper

Phase:

1 phase

Hold-In Power Consumption In Va:

10-10 VA

Device Short Name:

type C

Toxic Heavy Metal Free:

Yes

Mounting Support:

panel mounting

Connections - Terminals:

screw clamp terminal

Ambient Air Temperature For Operation:

-22-122 °F

Sustainable Offer Status:

Green Premium product

Switch Function:

DPDT

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Tightening Torque:

11-15 lbf.in

Catalog Class:

8501

Mercury Free:

Yes

Width:

2.5 in

Rated Power In Hp:

2.0 hp

Range Of Product:

Power Relay 8501C

Circularity Profile:

N/A

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of Svhc:

Yes

Height:

3.12 in

Warranty:

18 months

Line Rated Current:

30 A

Depth:

2.31 in

Contacts Type And Composition:

2 NO/2 NC
