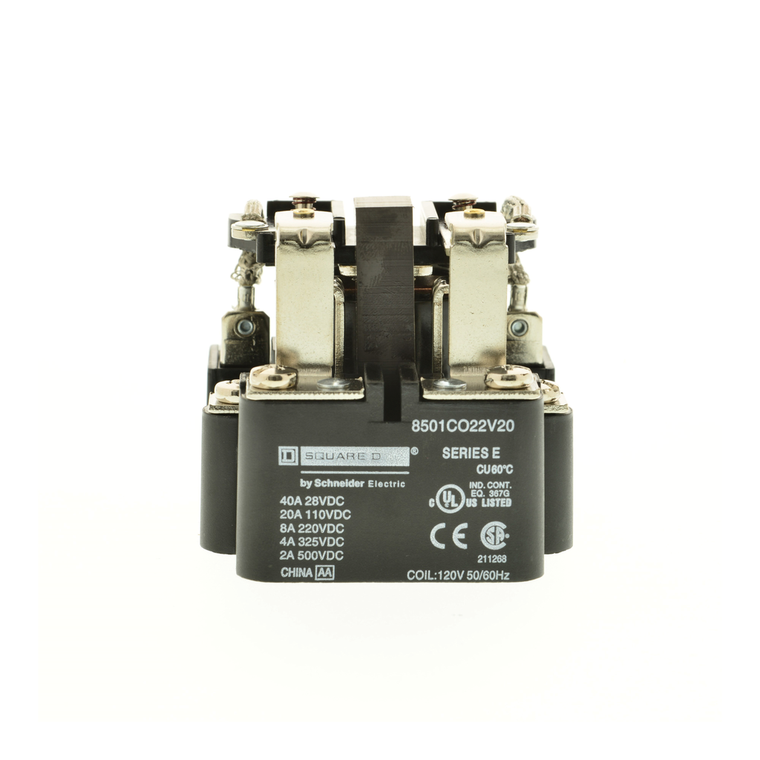

Schneider Electric 8501CO22V20 Relay 220Vdc 4Amp Type C +Options
8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration for VDC loads with two normally open and two normally closed contacts. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for 10 A resistive rating at 110 VDC or 4 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
- Toxic Heavy Metal Free:
- Yes
- Hold-In Power Consumption In Va:
- 10-10 VA
- Switch Function:
- DPDT
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- China Rohs Regulation:
- X
- Width:
- 2.5 in
- Height:
- 3.12 in
- Product Or Component Type:
- power relay
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1705008EN
- Mounting Support:
- panel mounting
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Connections - Terminals:
- screw clamp terminal
- Catalog Class:
- 8501
- Maximum Switching Voltage:
- 325 V DC
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Device Application:
- suited for controlling small single phase motors and other light loads
- Ambient Air Temperature For Operation:
- -22-122 °F
- Device Short Name:
- type C
- Line Rated Current:
- 20 A
- Contacts Type And Composition:
- 2 NO/2 NC
- Depth:
- 2.53 in
- Product Certifications:
- UL listed file E78351 CCN NLDX || CSA || CE
- Phase:
- 1 phase
- Awg Gauge:
- AWG 10 copper
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 11-15 lbf.in
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Power Relay 8501C
