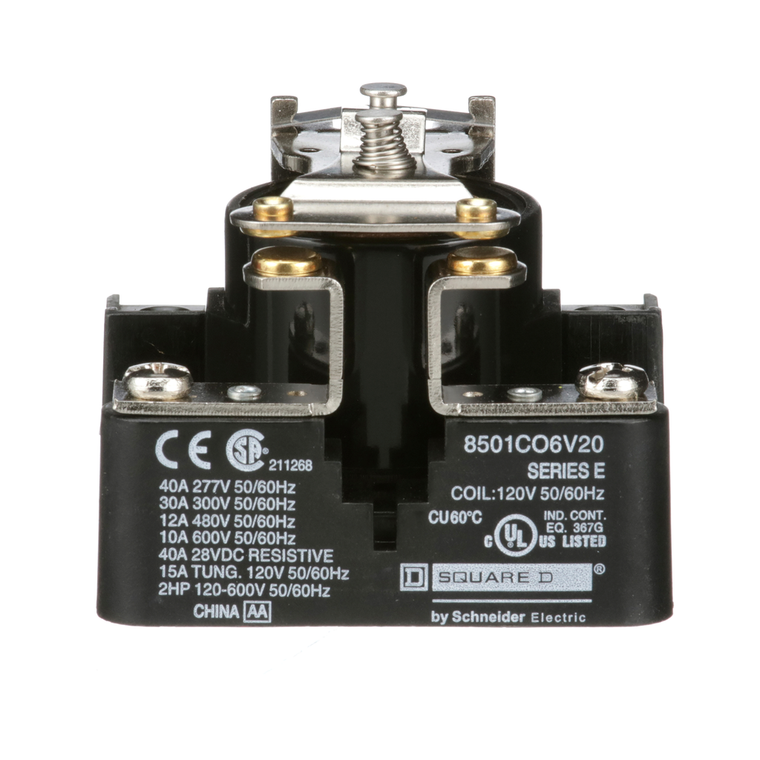

Schneider Electric 8501CO6V20 Relay 600Vac 10Amp Type C +Options

(No reviews yet) Write a Review
SKU:
8501CO6V20
UPC:
785901052036
Condition:
New
Mercury Free:
Yes
Product Or Component Type:
power relay
Mounting Support:
panel mounting
Device Short Name:
type C
[Uc] Control Circuit Voltage:
120 V AC 50/60 Hz
Hold-In Power Consumption In Va:
10-10 VA
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Line Rated Current:
30 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Awg Gauge:
AWG 10 copper
Tightening Torque:
11-15 lbf.in
Depth:
2.25 in
Rated Power In Hp:
2 hp
Product Certifications:
UL listed file E78351 CCN NLDX || CSA || CE
Environmental Disclosure:
ENVPEP1705008EN
Switch Function:
SPST
Ambient Air Temperature For Operation:
-22-122 °F
Rohs Exemption Information:
Yes
Device Application:
suited for controlling small single phase motors and other light loads
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
X
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Width:
2.5 in
Range Of Product:
Power Relay 8501C
Warranty:
18 months
Reach Free Of Svhc:
Yes
Height:
2.43 in
Catalog Class:
8501
Sustainable Offer Status:
Green Premium product
Maximum Switching Voltage:
600 V AC
Contacts Type And Composition:
1 NO
Connections - Terminals:
screw clamp terminal
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Phase:
1 phase
Circularity Profile:
N/A
Catalog:
View
Datasheet:
View
  • Schneider Electric 8501CO6V20 Relay 600Vac 10Amp Type C +Options
  • Schneider Electric 8501CO6V20 Relay 600Vac 10Amp Type C +Options
  • Schneider Electric 8501CO6V20 Relay 600Vac 10Amp Type C +Options
$39.89

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPST contact configuration with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 2 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 10 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
