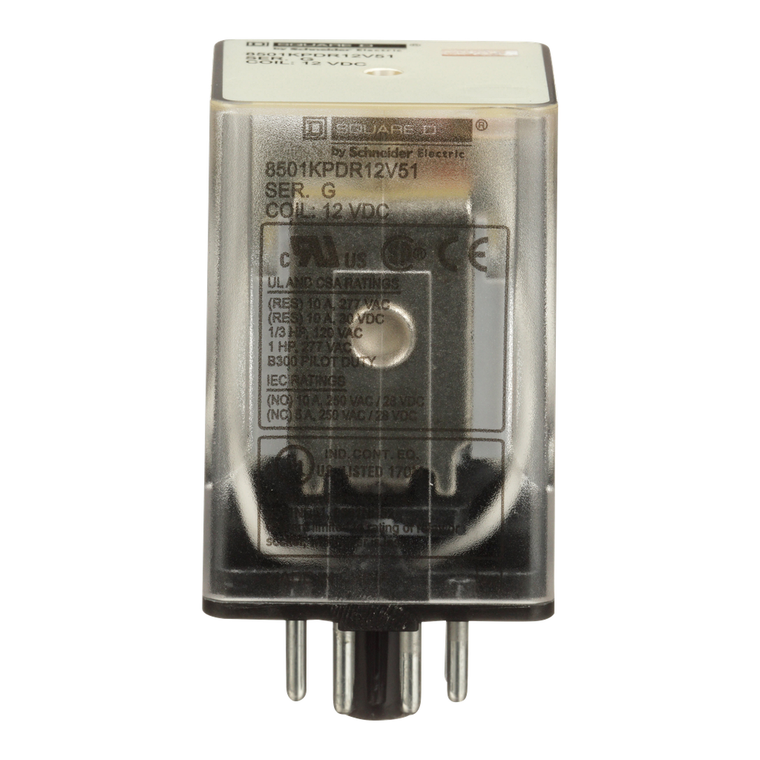

Schneider Electric 8501KPDR12V51 Relay 2Co Cyl Pin 10A@240V 12Vdc Coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501KPDR12V51 Relay 2Co Cyl Pin 10A@240V 12Vdc Coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501KPDR12V51

UPC:

785901981046

MPN:

Condition:

New

Contacts Material:

silver alloy (AgNi)

Maximum Switching Voltage:

300 V AC || 30 V DC

Rohs Exemption Information:

Yes

Rated Breaking Capacity:

3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508

Product Or Component Type:

relay

Depth:

1.4 in

Reach Free Of Svhc:

Yes

Rated Power In Hp:

1 hp 277 V AC || 0.33 hp 120 V AC

Relay Type:

general purpose

Circularity Profile:

N/A

China Rohs Regulation:

X

Product Compatibility:

8501NR52 || 8501NR51

Operating Time:

20 ms - pick-up || 20 ms - drop-out

Control Type:

without test button

Width:

1.4 in

Range Of Product:

8501K

Mounting Support:

socket

Environmental Disclosure:

ENVPEP1406038EN

Product Certifications:

UL Listed || UL Recognized || CSA || CE

Local Signalling:

no indicator

[Uc] Control Circuit Voltage:

12 V DC

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

2.66 in

Reach Regulation:

Free of Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Shape Of Pin:

tubular

Switch Function:

DPDT

Ambient Air Temperature For Operation:

-40-131 °F

Catalog:

View

Datasheet:

View
