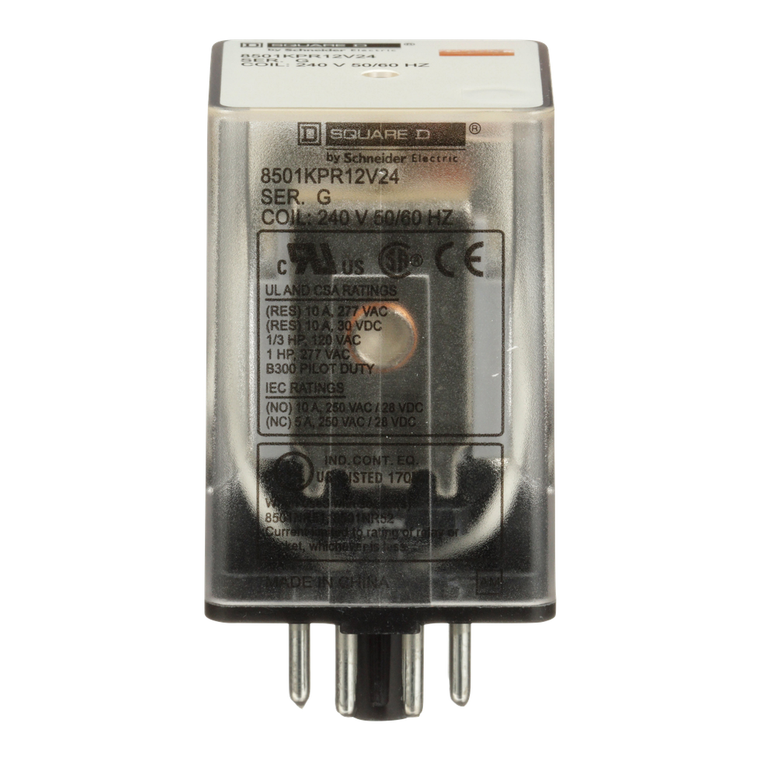

Schneider Electric 8501KPR12V24 Relay 2Co Cyl Pin 10A@240V 240Vac Coil
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Mounting Support:
- socket
- Ambient Air Temperature For Operation:
- -40-131 °F
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Depth:
- 1.4 in
- China Rohs Regulation:
- X
- Contacts Material:
- silver alloy (AgNi)
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Pin:
- tubular
- Product Or Component Type:
- relay
- Rated Power In Hp:
- 1 hp 277 V AC
- Reach Free Of Svhc:
- Yes
- Switch Function:
- DPDT
- Product Compatibility:
- 8501NR52 || 8501NR51
- Sustainable Offer Status:
- Green Premium product
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Width:
- 1.4 in
- Range Of Product:
- 8501K
- Environmental Disclosure:
- ENVPEP1406038EN
- Height:
- 2.66 in
- Relay Type:
- general purpose
- [Uc] Control Circuit Voltage:
- 240 V AC
- Control Type:
- without test button
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
