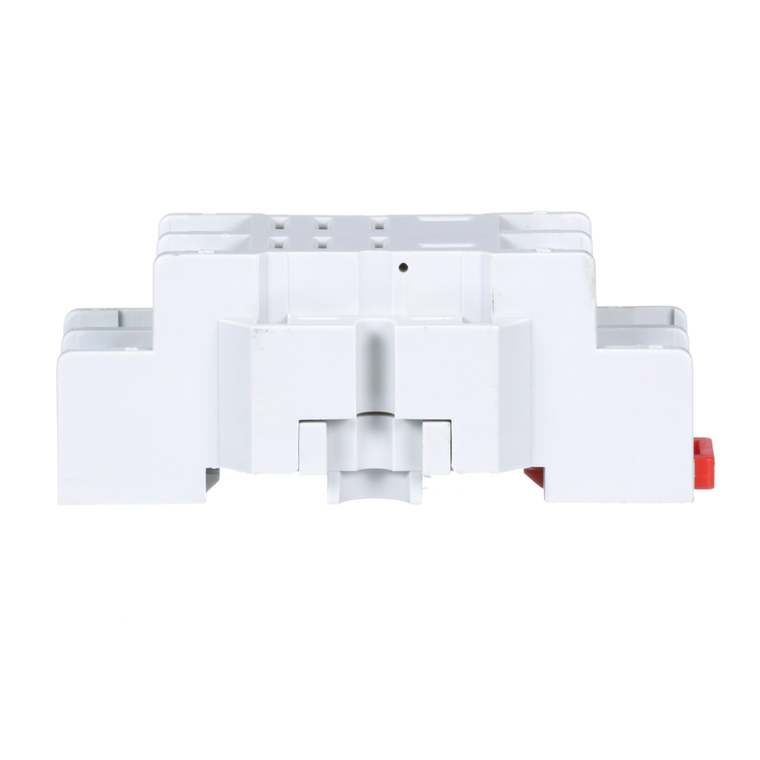

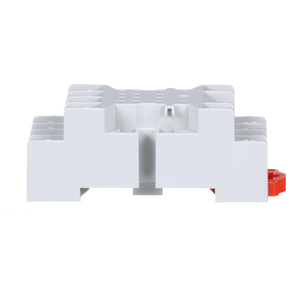

Schneider Electric 8501NR42 Relay Socket 300Vac 10Amp Type R +Option

Schneider Electric 8501NR42 Relay Socket 300Vac 10Amp Type R +Option

Schneider Electric
SKU:
8501NR42
|
UPC:
785901097846
$35.01
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS42 or 8501RSD42 relay will plug into this relay socket which is designed for 8 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Additional Information
Quantity Per Set:
1
Mounting Support:
panel || DIN rail
Range Of Product:
8501N
Depth:
25.27 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Environmental Disclosure:
ENVPEP1511021EN
Reach Free Of Svhc:
Yes
Width:
29.92 mm
Warranty:
18 months
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Electrical Connection:
double tiered screw clamp terminals
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Product Or Component Type:
Relay Socket
Product Certifications:
UL Recognized || CSA || CE
Line Rated Current:
10 A 300 V AC
Height:
69.09 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Shape Of Pin:
spade
Mercury Free:
Yes
Catalog:
View
Datasheet:
View
