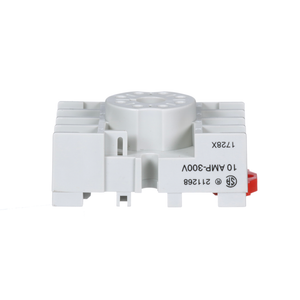

Schneider Electric 8501NR82 Relay Socket 600Vac 10A Type K +Option

Schneider Electric 8501NR82 Relay Socket 600Vac 10A Type K +Option

Schneider Electric
SKU:
8501NR82
|
UPC:
785901583868
$25.13
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KUR and 8501KUDR relays will plug into this relay socket which is designed for 11 spade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Additional Information
Warranty:
18 months
Depth:
26 mm
Height:
80 mm
Circularity Profile:
N/A
Product Or Component Type:
Relay Socket
Line Rated Current:
15 A 300 V AC
Quantity Per Set:
1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
8501N
Toxic Heavy Metal Free:
Yes
China Rohs Regulation:
X
Shape Of Pin:
spade
Electrical Connection:
double tiered screw clamp terminals
Product Certifications:
UL Recognized || CSA || CE
Width:
43 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mounting Support:
panel || DIN rail
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Free Of Svhc:
Yes
Environmental Disclosure:
ENVPEP1511021EN
Mercury Free:
Yes
Catalog:
View
Datasheet:
View
