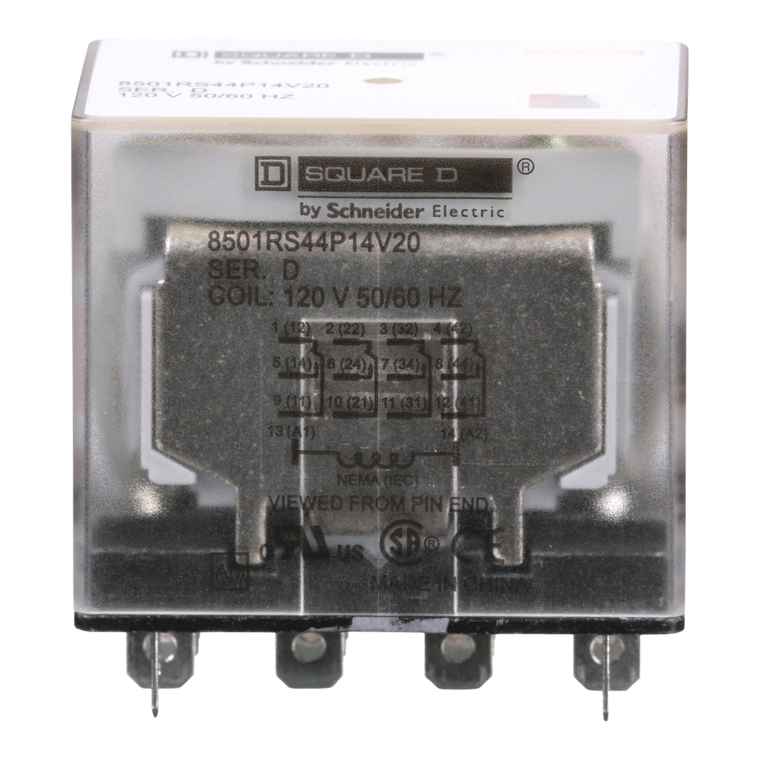

Schneider Electric 8501RS44P14V20 Relay250Vac15Amptyper+Options
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- China Rohs Regulation:
- X
- Control Type:
- without test button
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Product Or Component Type:
- Miniature Relay
- Sustainable Offer Status:
- Green Premium product
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Contacts Material:
- silver alloy, gold flashed
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Height:
- 27.3 mm
- Maximum Switching Voltage:
- 300 V AC || 30 V DC
- Ambient Air Temperature For Operation:
- -40-131 °F
- Rated Breaking Capacity:
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
- Shape Of Pin:
- spade
- Range Of Product:
- 8501R
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Relay Type:
- standard
- Product Compatibility:
- 8501NR34
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Support:
- socket
- [Uc] Control Circuit Voltage:
- 120 V AC
- Depth:
- 41.8 mm
- Switch Function:
- 4PDT
- Reach Free Of Svhc:
- Yes
- Rated Power In Hp:
- 0.5 120 V AC || 1 277 V AC
- Environmental Disclosure:
- ENVPEP1511008EN
- Local Signalling:
- green indicator relay energised LED
- Width:
- 40.6 mm
