Schneider Electric 8501RSD34V51 Relay 240Vac 5Amp Type R +Options
Schneider Electric
$64.66
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

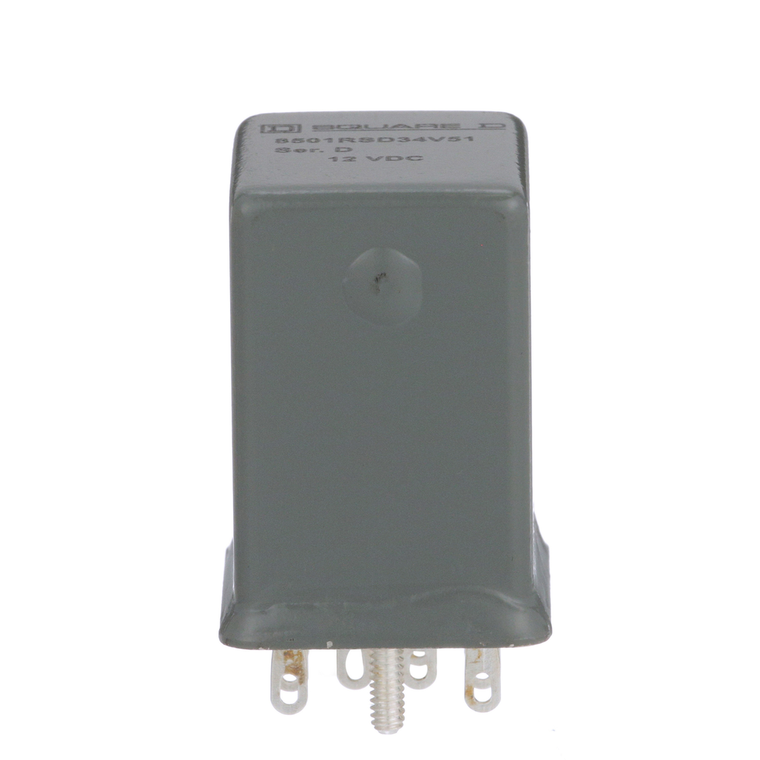

Schneider Electric 8501RSD34V51 Relay 240Vac 5Amp Type R +Options
8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
- Rated Breaking Capacity:
- 5 A 120 V AC resistive control circuit UL 508 || 5 A 240 V AC resistive control circuit UL 508 || 5 A 30 V DC resistive control circuit UL 508
- Operating Time:
- 20 ms - pick-up || 20 ms - drop-out
- Shape Of Pin:
- spade
- Height:
- 29.4 mm
- [Uc] Control Circuit Voltage:
- 12 V DC
- Control Type:
- without test button
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Compatibility:
- 8501NR45
- Contacts Material:
- hermetically sealed silver tin oxide
- Warranty:
- 18 months
- Range Of Product:
- 8501R
- Rohs Exemption Information:
- Yes
- Mounting Support:
- socket
- Reach Free Of Svhc:
- Yes
- Switch Function:
- 4PDT
- Depth:
- 38.9 mm
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Local Signalling:
- no indicator
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || UL Recognized || CSA || CE
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Rated Power In Hp:
- not rated
- Width:
- 23.1 mm
- Ambient Air Temperature For Operation:
- -40-131 °F
- Product Or Component Type:
- Miniature Relay
- Maximum Switching Voltage:
- 30 V DC || 240 V AC
- Relay Type:
- low voltage
- Environmental Disclosure:
- ENVPEP1511008EN
- Catalog:
- View
- Datasheet:
- View
