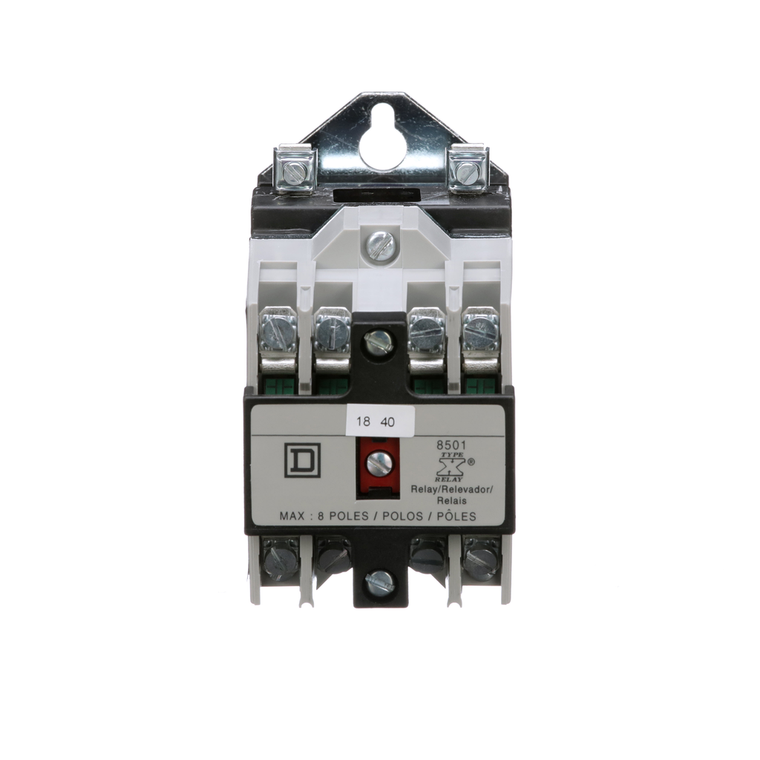

Schneider Electric 8501XDO40V56 Relay 600Vac 10Amp Nema +Options
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1310013
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- Line Rated Current:
- 10 A AC || 5 A DC
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Product Certifications:
- CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
- Electrical Connection:
- screw clamp terminals
- Width:
- 2.23 in
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Awg Gauge:
- AWG 18...AWG 12 copper
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Operation:
- -40-160 °F
- Inrush Power In W:
- 18 W
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- relay
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contacts Type And Composition:
- 4 NO 4 standard contact cartridges
- Rohs Exemption Information:
- Yes
- Depth:
- 5.17 in
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP1310013EN
- Height:
- 3.56 in
- Mounting Support:
- panel
- Operating Time:
- 37 ms - pick-up || 21 ms - drop-out
- Relay Type:
- control
- Control Circuit Voltage Limits:
- operational 0.8...1.1 Uc DC
- [Uc] Control Circuit Voltage:
- 48 V DC
- Hold-In Power Consumption In W:
- 18-18 W
- Range Of Product:
- 8501X
