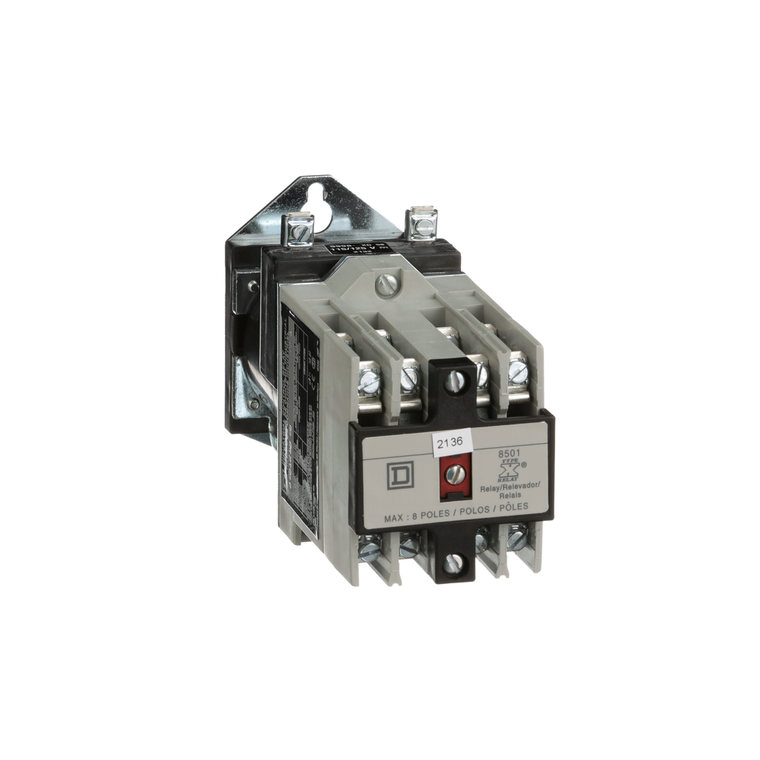

Schneider Electric 8501XDO60V62 Relay 600Vac 10Amp Nema +Options
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with six 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The six plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. 18 to 12 AWG copper wire can be used with this relay. Relay has a 115/125 VDC replaceable coil. Relay is UL listed and CSA certified. Relay is 3.56 inches tall, 2.23 inches wide and 6.37 inches deep. Relay is UL listed and CSA certified.
- [Uc] Control Circuit Voltage:
- 115/125 V DC
- Rated Breaking Capacity:
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
- Warranty:
- 18 months
- Contacts Type And Composition:
- 6 NO 6 standard contact cartridges
- Line Rated Current:
- 10 A AC || 5 A DC
- Hold-In Power Consumption In W:
- 18-18 W
- Relay Type:
- control
- [Icm] Rated Short-Circuit Making Capacity:
- 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
- Control Circuit Voltage Limits:
- operational 0.8...1.1 Uc DC
- Circularity Profile:
- ENVEOLI1310013
- Depth:
- 6.37 in
- Product Certifications:
- UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Time:
- 37 ms - pick-up || 21 ms - drop-out
- Inrush Power In W:
- 18 W
- Mercury Free:
- Yes
- Awg Gauge:
- AWG 18...AWG 12 copper
- Mounting Support:
- panel
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Environmental Disclosure:
- ENVPEP1310013EN
- Rohs Exemption Information:
- Yes
- Width:
- 2.23 in
- Ambient Air Temperature For Operation:
- -40-160 °F
- Electrical Connection:
- screw clamp terminals
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Height:
- 3.56 in
- Range Of Product:
- 8501X
- Product Or Component Type:
- relay
