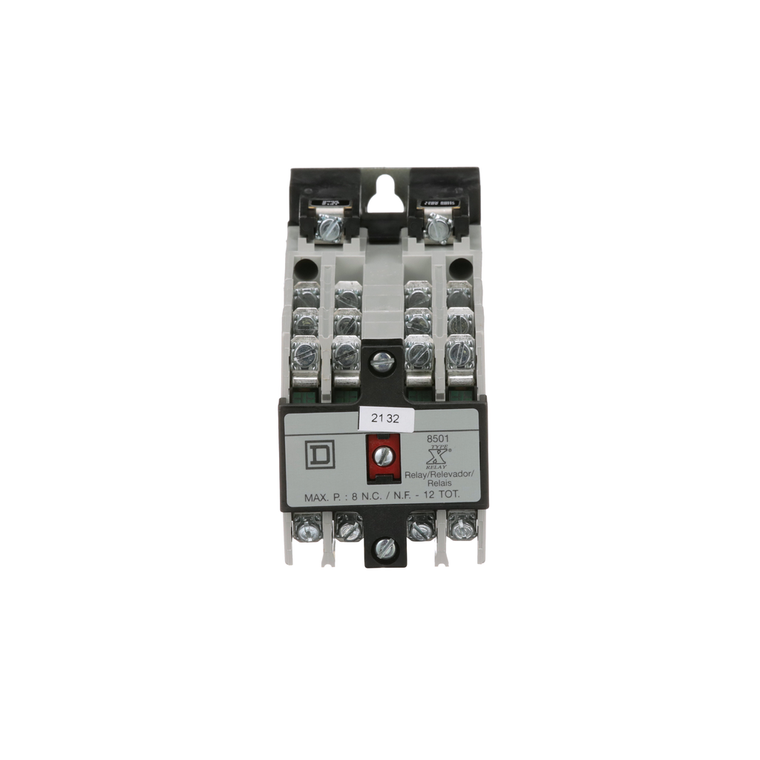

Schneider Electric 8501XO1200V02 Relay 600Vac 10Amp Nema +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 8501XO1200V02 Relay 600Vac 10Amp Nema +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

8501XO1200V02

UPC:

785901536864

MPN:

Condition:

New

Electrical Connection:

screw clamp terminals

Operating Time:

15 ms - pick-up || 16 ms - drop-out

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Tightening Torque:

control circuit 1.02-1.36 N.m screw terminals

Mounting Support:

panel

Contacts Type And Composition:

12 NO 12 standard contact cartridges

Height:

3.5 in

Ambient Air Temperature For Operation:

-40-160 °F

Product Certifications:

CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR

Hold-In Power Consumption In Va:

23-23 VA 60 Hz || 25-25 VA 50 Hz

Awg Gauge:

AWG 18...AWG 12 copper

China Rohs Regulation:

X

Line Rated Current:

10 A AC || 5 A DC

Sustainable Offer Status:

Green Premium product

Rated Breaking Capacity:

6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||

Relay Type:

control

Rohs Exemption Information:

Yes

[Uc] Control Circuit Voltage:

110 V AC 50 Hz || 120 V AC 60 Hz

Product Or Component Type:

relay

Range Of Product:

8501X

Inrush Power In Va:

148-148 VA 60 Hz || 143-143 VA 50 Hz

Mercury Free:

Yes

Circularity Profile:

ENVEOLI1310013

Control Circuit Voltage Limits:

operational 0.85...1.1 Uc AC 50/60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

2.23 in

[Icm] Rated Short-Circuit Making Capacity:

60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Depth:

6.36 in

Environmental Disclosure:

ENVPEP1310013EN

Catalog:

View

Datasheet:

View
