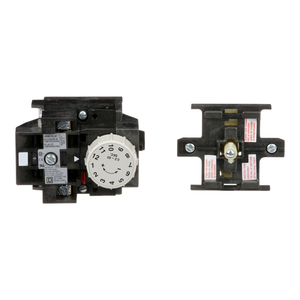

Schneider Electric 8501XTD1 Relay Pneumatic Timer Attachment Nema
Schneider Electric
Schneider Electric 8501XTE1 Timer Attachment For Relays
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This pneumatic timer attachment can be added to a standard 4 pole relay. This timer attachment comes as standard in the on delay mode but can be converted to off delay. The timer attachment comes with one normally closed and one normally open timed contact. The contacts are the standard 8501XC1 relay cartridge. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer attachment is UL listed and CSA certified. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer has screw clamp terminals. This timer attachment is UL listed and CSA certified.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Product Or Component Type:
- timing relay
- Relay Type:
- control relay
- Sustainable Offer Status:
- Green Premium product
- Time Range:
- 0.2...60 s
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- control circuit 1.02-1.36 N.m screw terminals
- Awg Gauge:
- AWG 18...AWG 12 copper
- Electrical Connection:
- screw clamp terminals
- Product Certifications:
- CSA LR60905 class 3211 02 || CE || UL recognized E78403 CCN NKCR2
- Contacts Type And Composition:
- 1 NO/1 NC
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Time Delay Type:
- on-delay
- Circularity Profile:
- ENVEOLI1310013
- Environmental Disclosure:
- ENVPEP1310013EN
- Range Of Product:
- 8501X
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
