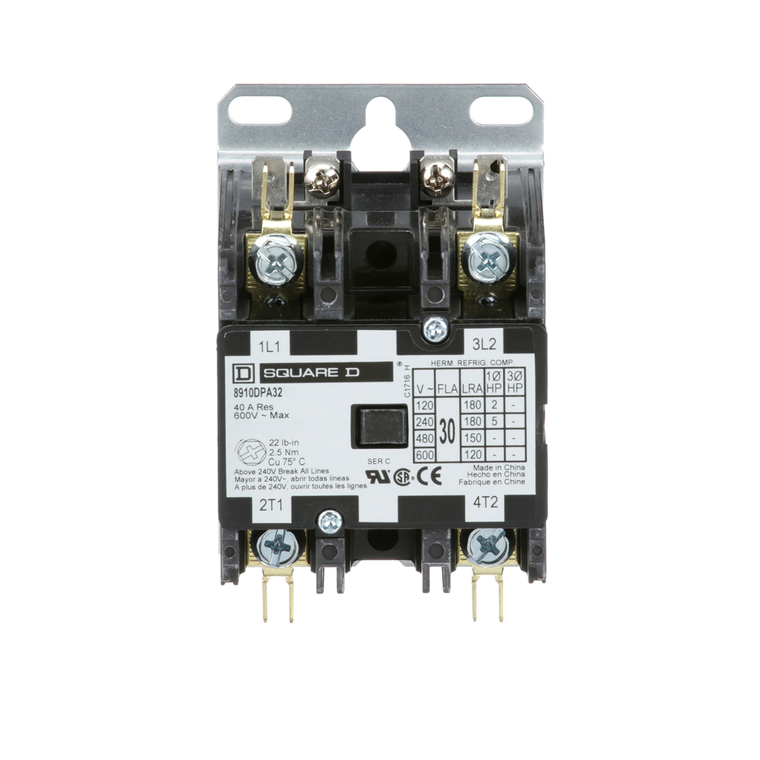

Schneider Electric 8910DPA32V06 Contactor 600Vac 30Amp Dpa +Options
Schneider Electric
$90.47
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
- Pole Contact Composition:
- 2 NO
- Poles Description:
- 2P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- Definite Purpose Contactor
- Phase:
- 1 phase
- Locked Rotor Rated Current:
- 150 A 460 V AC || 120 A 575 V AC || 180 A 277 V AC
- Mercury Free:
- Yes
- Maximum Horse Power Rating:
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
- Range Of Product:
- DPA
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 30 A
- [Ue] Rated Operational Voltage:
- 600 V AC
- Product Certifications:
- UL Recognized || CSA
- Electrical Connection:
- binder head || quick connect terminals
- Warranty:
- 18 months
- [Uc] Control Circuit Voltage:
- 440 V AC 50 Hz || 480 V AC 60 Hz
- Eu Rohs Directive:
- Compliant with Exemptions
