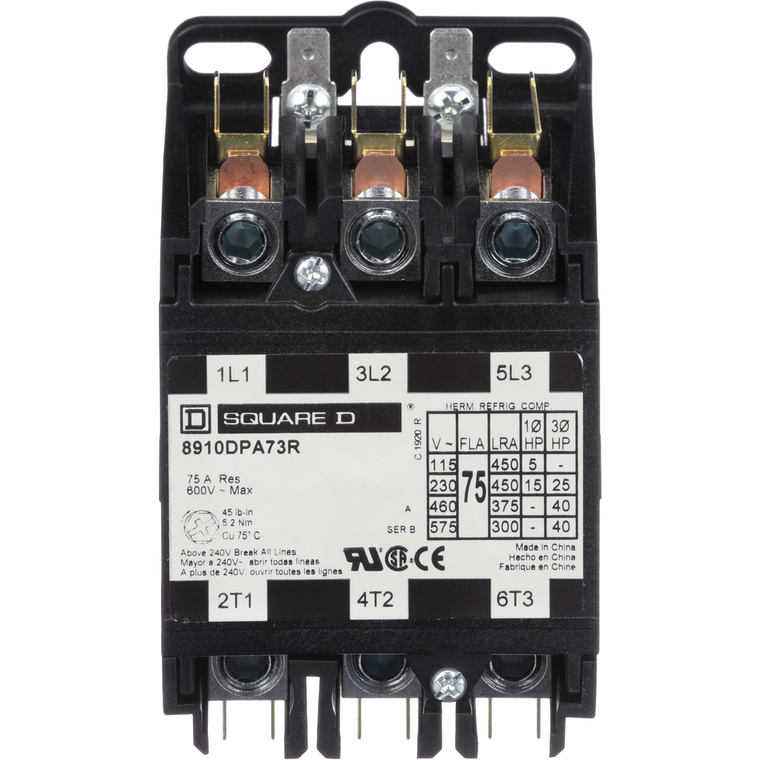

Schneider Electric 8910DPA73RV14 Definite Purpose Contactor
Schneider Electric
$314.82
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Contactor, Definite Purpose, 75A, 3 pole, 40 HP at 575 VAC, 3 phase, 24/24 VAC 50/60 Hz coil, open
- Depth:
- 65 mm
- Maximum Horse Power Rating:
- 5-5 hp 115 V AC, 1 phase || 15-15 hp 230 V AC, 1 phase || 25-25 hp 230 V AC, 3 phase || 40-40 hp 460 V AC, 3 phase || 40-40 hp 575 V AC, 3 phase
- Pole Contact Composition:
- 3 NO
- Rohs Exemption Information:
- Yes
- Locked Rotor Rated Current:
- 450 A 277 V AC || 375 A 460 V AC || 300 A 575 V AC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 75 A
- Electrical Connection:
- box lugs || quick connect terminals
- Height:
- 92.8 mm
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Width:
- 104.03 mm
- Warranty:
- 18 months
- Product Certifications:
- UL Recognized || CSA
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Or Component Type:
- Definite Purpose Contactor
- Phase:
- 3 phase
- Poles Description:
- 3P
- Range Of Product:
- DPA
- [Ue] Rated Operational Voltage:
- 600 V AC
- Catalog:
- View
- Datasheet:
- View
