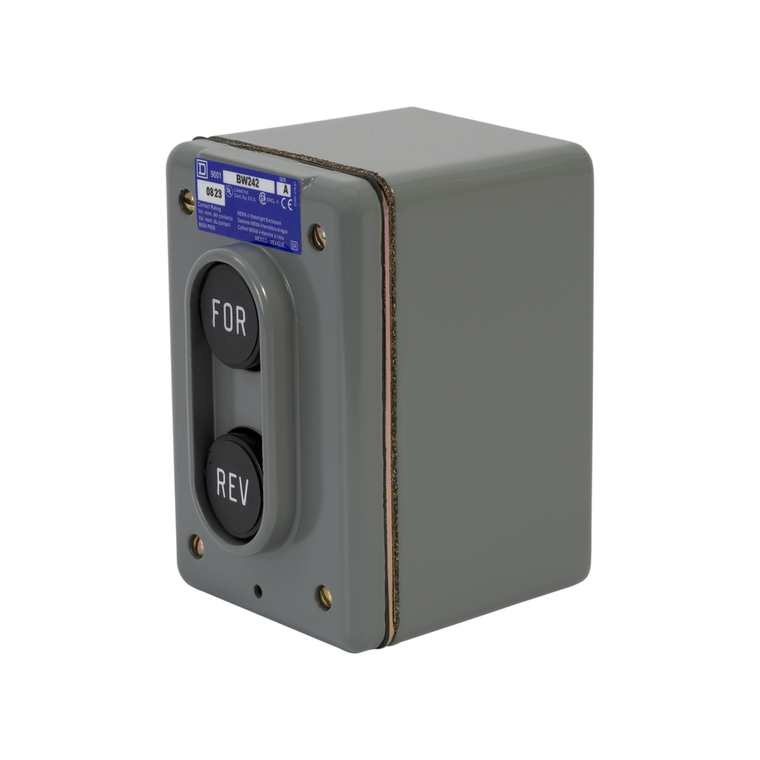

Schneider Electric 9001BW242 Control Station 600Vac 5A T-B
SKU:
9001BW242
UPC:
7.85902E+11
MPN:
Condition:
New
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1304003EN
Colour Of Base Of Enclosure:
grey
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony 9001BW
Nema Degree Of Protection:
NEMA 1 || NEMA 4
Cad Overall Depth:
91 mm
Control Station Application:
two functions
Cad Overall Height:
108 mm
Contacts Type And Composition:
1 NO + 1 NO
Product Or Component Type:
complete control station
Sustainable Offer Status:
Green Premium product
Reach Free Of Svhc:
Yes
Standards:
IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C 4520 || IEC 60947-1
[Ie] Rated Operational Current:
0.6 A 600 V, AC-1/DC-1 || 0.75 A 480 V, AC || 1.5 A 240 V, AC || 3.75 A 120 V, AC
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Width:
70 mm
Environmental Characteristic:
waterproof || dustproof
Type Of Installation:
indoor/outdoor
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1304003EN
Mechanical Durability:
5000000 cycles
Control Station Composition:
1 flush push-button, black, white FOR || 1 flush push-button, black, white REV
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Short Name:
9001BW
Warranty:
18 months
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
