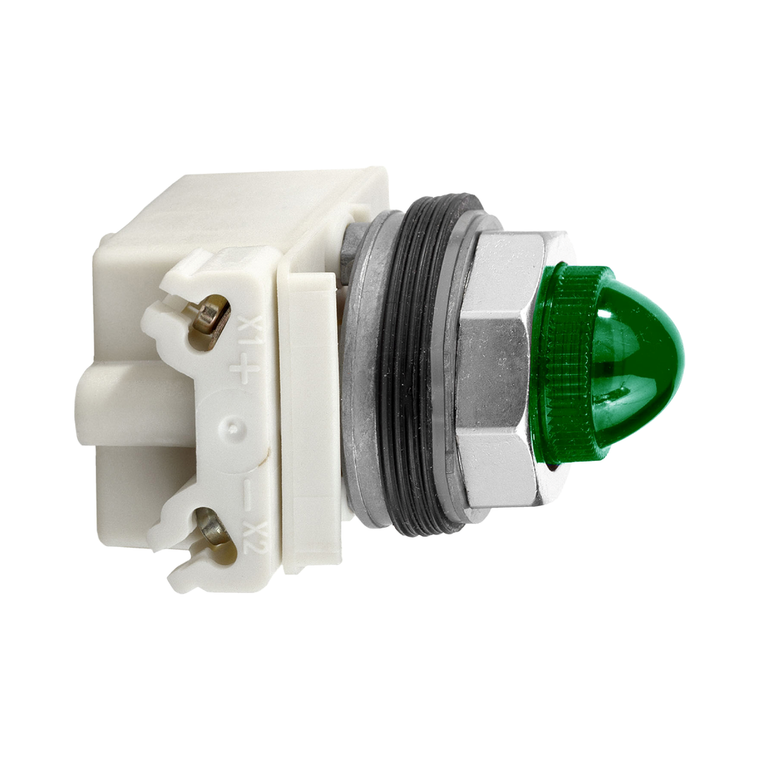

Schneider Electric 9001KP35G9 Pilot Light 28V 30Mm Type K +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KP35G9 Pilot Light 28V 30Mm Type K +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KP35G9

UPC:

3.38912E+12

MPN:

Condition:

New

Cap/Operator Or Lens Colour:

green

China Rohs Regulation:

X

Mounting Diameter:

30 mm

Light Source:

incandescent bulb

Light Block Supply:

direct 24...28 V AC/DC

Bulb Base:

BA 9s

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Device Presentation:

complete product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

70 mm

Protective Treatment:

TC

Warranty:

18 months

Cad Overall Width:

54 mm

Range Of Product:

Harmony 9001K

Ambient Air Temperature For Storage:

-40-70 °C

Light Source:

incandescent

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Size:

30 mm

Operating Position:

any position

Product Certifications:

UL 508 || NEMA

Tightening Torque:

0.8-0.8 N.m IEC 60947-1

Environmental Disclosure:

ENVPEP121006EN

Standards:

CSA C22.2 No 14 || JIS C8201-5-1 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1

Device Short Name:

9001K

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Operation:

-25-70 °C

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP66 IEC 60529

Shape Of Screw Head:

cross slotted

[Us] Rated Supply Voltage:

24...28 V

Rohs Exemption Information:

Yes

Net Weight:

0.134 kg

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Bezel Material:

metal

[Us] Rated Supply Voltage:

24...28 V AC/DC

Overvoltage Category:

class II IEC 61140

Lens Type:

domed plastic

Lens Material:

polycarbonate

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Shock Resistance:

50 gn IEC 60068-2-27

Light Block Supply:

full voltage

Product Or Component Type:

pilot light

Cad Overall Depth:

42 mm

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Lens Type:

domed

Circularity Profile:

N/A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1
