Schneider Electric 9001KR8P38LRRH25 Push Button 600Vac 10A 30Mm T-K

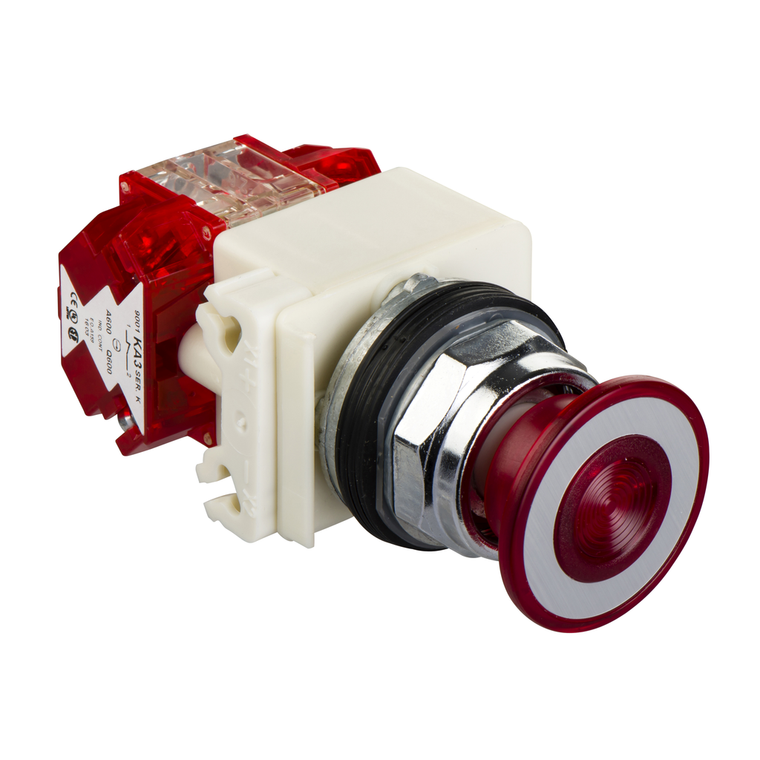

This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
- Device Presentation:
- complete product
- Size:
- 30 mm
- Bulb Base:
- BA 9s
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Operator Additional Information:
- screw-on plastic
- Light Block Supply:
- without supply
- Light Source Colour:
- red
- Product Or Component Type:
- illuminated push-button
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 3 positions
- Light Source:
- LED
- Device Short Name:
- K
- Product Certifications:
- NEMA || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contact Operation:
- late-break
- Bezel Material:
- metal
- Type Of Operator:
- pull : spring return, center : stay put, push : spring return
- Contacts Type And Composition:
- 1 NC late break + 1 NC
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony 9001K
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- Cap/Operator Or Lens Colour:
- red
- Operator Profile:
- mushroom à 41 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP121006EN
- [Us] Rated Supply Voltage:
- 120 V
- Mounting Diameter:
- 30 mm
- Brochure:
- View
- Datasheet:
- View
