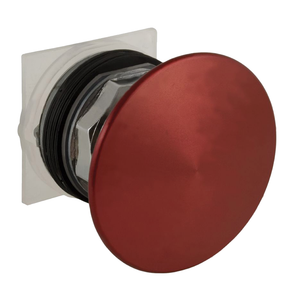

Schneider Electric 9001KR9BM94 2 Position Push Pull

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KR9BM94 2 Position Push Pull

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KR9BM94

UPC:

785901932840

MPN:

Condition:

New

Device Presentation:

basic element

Rohs Exemption Information:

Yes

Operator Position Information:

2 positions

Environmental Disclosure:

ENVPEP121006EN

Warranty:

18 months

Operating Position:

any position

Cap/Operator Or Lens Colour:

black

Shock Resistance:

50 gn IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

class II IEC 61140

Mechanical Durability:

5000000 cycles

Contacts Type And Composition:

without contact block

Product Certifications:

UL 508 || NEMA

Operator Profile:

mushroom Ø 40 mm

Cad Overall Width:

45.5 mm

Operator Additional Information:

screw-on metal with set screw

Cad Overall Depth:

74 mm

Head Material:

metal

Protective Treatment:

TC

Shape Of Signaling Unit Head:

round

Circularity Profile:

N/A

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-25-70 °C

China Rohs Regulation:

X

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Compatibility:

contact block 9001KA..

Device Short Name:

9001K

Bezel Material:

metal

Net Weight:

0.141 kg

Cad Overall Height:

45 mm

Standards:

IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14

Size:

30 mm

Ip Degree Of Protection:

IP66 IEC 60529

Mounting Diameter:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Operator Profile:

black mushroom Ø 40 mm, unmarked

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Range Of Product:

Harmony 9001K

Product Or Component Type:

head for push-button

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Brochure:

View

Catalog:

View

Datasheet:

View
