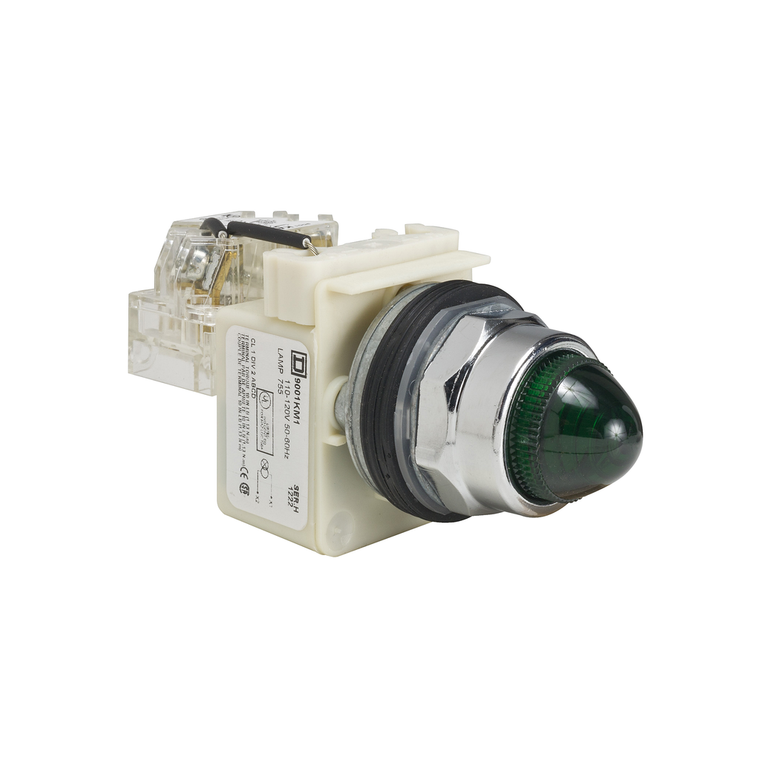

Schneider Electric 9001KT1G9 Pilot Light 120Vac 30Mm Type K +Options
SKU:
9001KT1G9
UPC:
785901820772
MPN:
Condition:
New
Supply Frequency:
50...60 Hz
[Us] Rated Supply Voltage:
110...120 V
Cap/Operator Or Lens Colour:
green
China Rohs Regulation:
X
Bulb Base:
BA 9s
Light Block Supply:
via integral transformer
Operating Mode:
push-to-test
Lens Type:
domed
Range Of Product:
Harmony 9001K
Light Block Supply:
via transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
Lens Type:
domed plastic
Size:
30 mm
Environmental Disclosure:
ENVPEP121006EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Bezel Material:
metal
Light Source:
incandescent bulb
Lens Material:
polycarbonate
Circularity Profile:
N/A
Device Short Name:
K
Mounting Diameter:
30 mm
Contacts Type And Composition:
1 C/O
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
push-to-test pilot light
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shape Of Screw Head:
round
Mercury Free:
Yes
Product Certifications:
CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
This Harmony 9001K, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides...
This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its...
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater...
