Schneider Electric

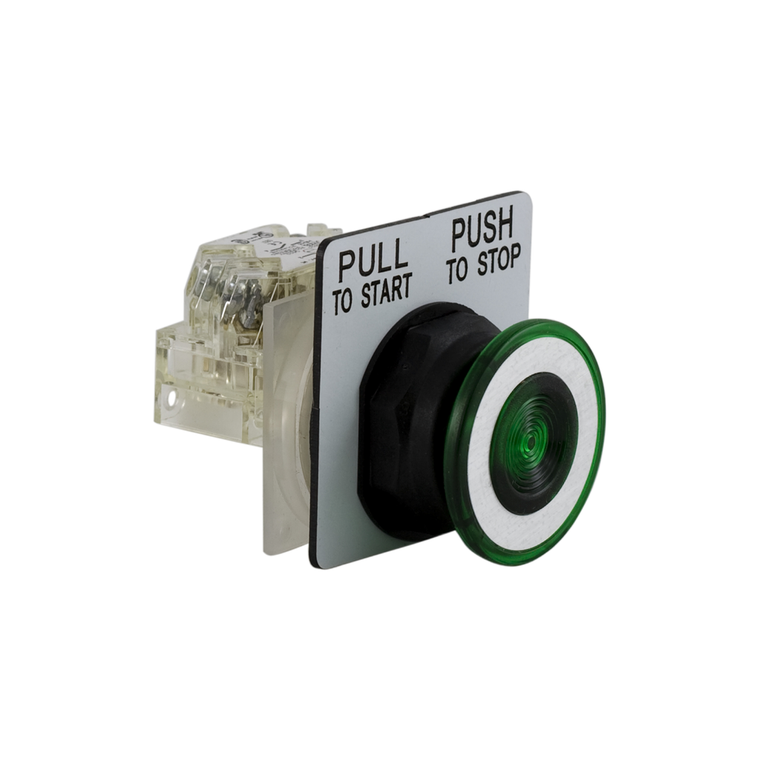

Schneider Electric 9001SKR9GH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

(No reviews yet) Write a Review
SKU:
9001SKR9GH13
UPC:
785901043027
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Contact Operation:
standard
Device Presentation:
complete product
Operator Position Information:
2 positions
Product Or Component Type:
push-button
China Rohs Regulation:
X
Warranty:
18 months
Mechanical Durability:
5000000 cycles
Rohs Exemption Information:
Yes
Cap/Operator Or Lens Colour:
green
Bezel Material:
plastic
Ip Degree Of Protection:
IP66
Type Of Operator:
push-pull
Range Of Product:
Harmony 9001SK
Operator Profile:
green mushroom Ø 41 mm
Operator Additional Information:
screw-on plastic
Sustainable Offer Status:
Green Premium product
Operator Profile:
mushroom Ø 41 mm
Toxic Heavy Metal Free:
Yes
Size:
30 mm
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Circularity Profile:
N/A
Reach Free Of Svhc:
Yes
Contacts Type And Composition:
1 C/O
Environmental Disclosure:
ENVPEP120816EN
Standards:
UL 508 || EN/IEC 60947-5-4 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator:
spring return
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Device Short Name:
9001SK
Mounting Diameter:
30 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Brochure:
View
Catalog:
View
Datasheet:
View
$188.00

Description

This Harmony 9001SK, modular green push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
