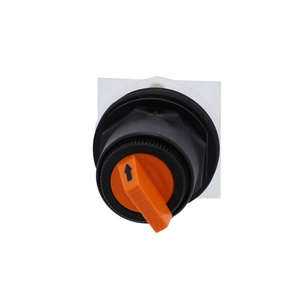

Schneider Electric 9001SKS11 30Mm Selector Switch 2 Position
Schneider Electric
$42.80
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 2 postion non-illuminated selector switch has a plastic ring nut. The selector switch is maintained in both positions. This selctor switch has no knob. The desired knob needs to be ordered separately. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a 30mm panel cutout." "The modular range of 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
- Sustainable Offer Status:
- Green Premium product
- Size:
- 30 mm
- Operator Profile:
- without handle
- Device Presentation:
- basic element
- Environmental Disclosure:
- ENVPEP120820EN
- Cam Profile:
- 5
- Type Of Operator:
- stay put
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Protective Treatment:
- TC
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Electrical Shock Protection Class:
- class II IEC 61140
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Type And Composition:
- without contact block
- Product Certifications:
- UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/4X/6/12/13
- Device Short Name:
- 9001SK
- Warranty:
- 18 months
- Mounting Diameter:
- 30 mm
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for selector switch
- Range Of Product:
- Harmony 9001SK
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 2 positions
- Toxic Heavy Metal Free:
- Yes
- Bezel Material:
- plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- N/A
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
