Schneider Electric 9998DA3V02 Starter Coil 120V Dpa
Schneider Electric
$57.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

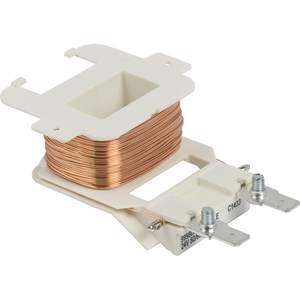

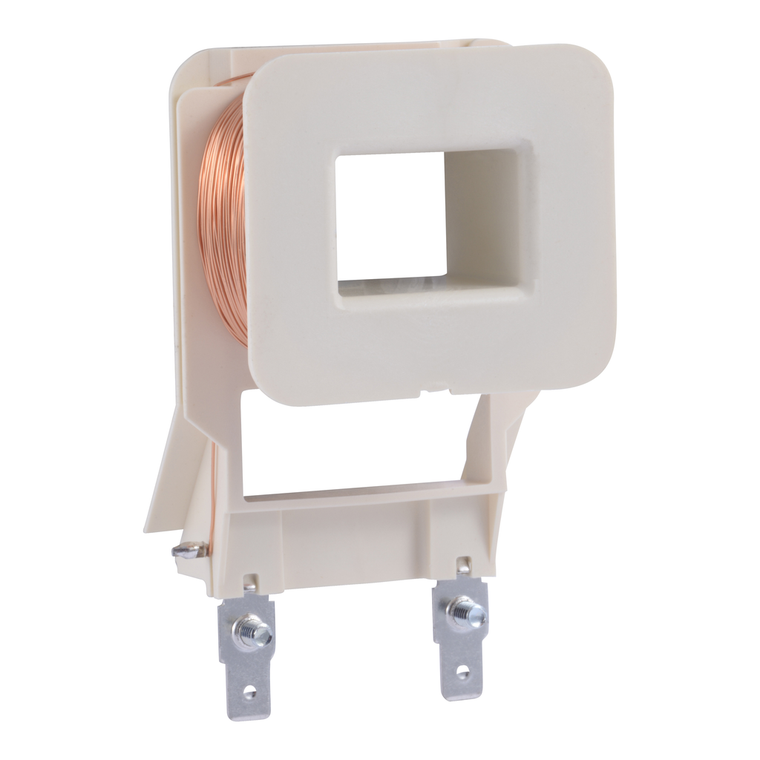

Schneider Electric 9998DA3V02 Starter Coil 120V Dpa
8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA7 or 8910DPA9 definite purpose contactor rated 75A or 90A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 110/120 VAC 50/60 Hz coil is for a 8910DPA7 and 8910DPA9 definite purpose contactor. The inrush power of this coil is 214 VA. It has an average sealed consumption of 19 VA. This coil is used in a contactor that is UL listed and CSA certified.
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Catalog:
- View
- Datasheet:
- View
