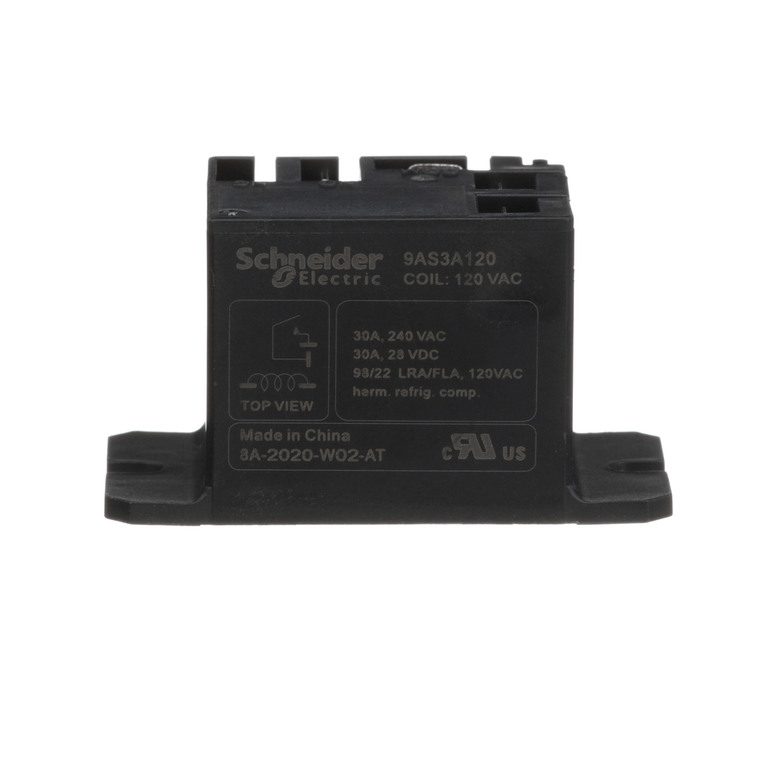

Schneider Electric 9AS3A120 Electromechnical Power Relays, 120Vac Pack of 10

SKU:

9AS3A120

UPC:

3606489915247

MPN:

Condition:

New

Width:

27.3 mm

Ambient Air Temperature For Operation:

-40-40 °C

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

Network Frequency:

50-60 Hz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Switching Voltage:

277 V AC || 28 V DC

Standards:

UL 60947-4-1

[Ui] Rated Insulation Voltage:

320 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input Current:

30 A

Drop-Out Voltage Threshold:

>= 0.2 Uc

Mounting Support:

panel flange

Environmental Disclosure:

ENVPEP2006003EN

Minimum Switching Capacity:

5 W at 1 A, 5 V DC || 12 VA at 1 A, 12 V AC

Ambient Air Temperature For Storage:

-40-85 °C

Eu Rohs Directive:

Compliant

Operating Position:

any position

China Rohs Regulation:

X

[Uc] Control Circuit Voltage:

120 V AC 50-60 Hz

Net Weight:

0.032 kg

Lead Free:

Yes

Product Certifications:

UL

Vibration Resistance:

+/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating

Dielectric Strength:

2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

Connections - Terminals:

Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Control Circuit Voltage Limits:

0.85...1.1 Uc

Pvc Free:

Yes

Operating Time:

20 ms

Mercury Free:

Yes

Shock Resistance:

10 gn operating || 100 gn not operating

Electrical Durability:

100000 cycles, 30 A at 240 V, AC-1 || 50000 cycles for resistive load, 30 A at 28 V, DC || 100000 cycles for resistive load, 24 A at 240 V, AC || 30000 cycles for full load, 22 A at 120 V, AC-8a || 1000 cycles for motor load || 6000 cycles for ballas

Rated Power In Va:

470 VA at 240 V on pilot duty

Contacts Type And Composition:

NO

Reset Time:

10 ms

Contacts Material:

silver alloy contacts

Switch Function:

SPST

Protection Category:

RT III

Phenolic Free Solution:

Yes

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Average Consumption:

2.6 VA

Product Or Component Type:

power relay

Average Resistance:

2500 Ohm at 23 °C +/- 10 %

[Ie] Rated Operational Current:

30 A at 240 V AC-1 || 30 A at 28 V DC (on resistive load) || 24 A at 240 V AC (on resistive load) || 98 A at 120 V AC-8a (locked rotor) || 22 A at 120 V AC-8a (full load) || 10 A at 277 V AC-5a (ballast)

Mechanical Durability:

10000000 cycles

Toxic Heavy Metal Free:

Yes

Silicon Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rated Power In Hp:

1 hp at 125 V AC || 2 hp at 250 V AC

Rohs Exemption Information:

Yes

Pollution Degree:

3

Height:

50 mm

Range Of Product:

Harmony

Depth:

27.8 mm
