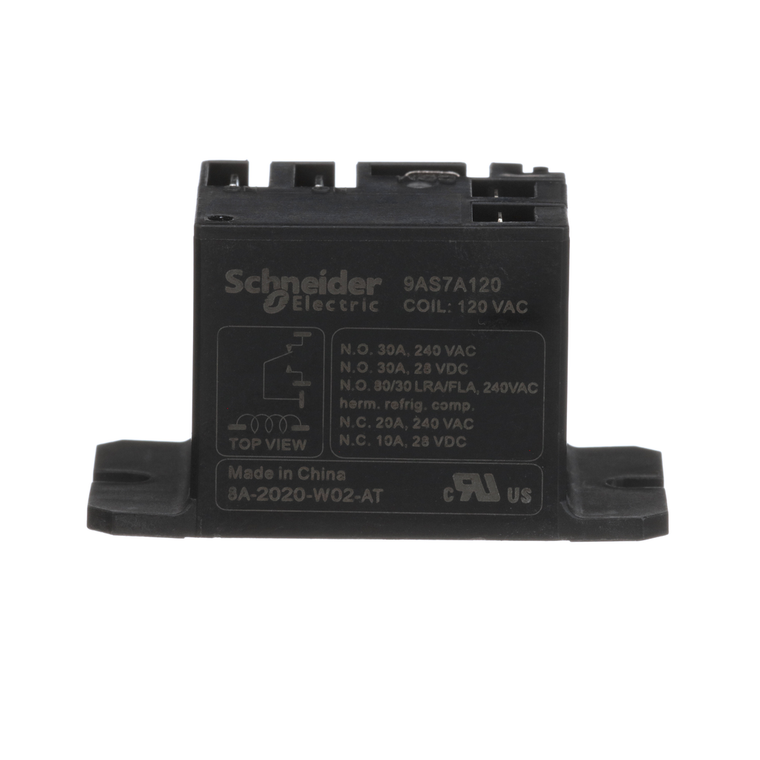

Schneider Electric 9AS7A120 Electromechnical Power Relays, 120Vac Pack of 10

SKU:

9AS7A120

UPC:

3606489915322

MPN:

Condition:

New

Range Of Product:

Harmony

Eu Rohs Directive:

Compliant

Depth:

27.8 mm

Control Circuit Voltage Limits:

0.85...1.1 Uc

Standards:

UL 60947-4-1

Circularity Profile:

ENVEOLI2006003EN

Reset Time:

10 ms

Rated Power In Hp:

1 hp at 125 V AC, NO || 2 hp at 250 V AC, NO || 0.25 hp at 125 V AC, NC || 0.5 hp at 250 V AC, NC

Vibration Resistance:

+/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-40-85 °C

Electrical Durability:

100000 cycles, 30 A at 240 V, AC-1 NO || 50000 cycles for resistive load, 30 A at 28 V, DC NO || 30000 cycles for full load, 22 A at 120 V, AC-8a NO || 30000 cycles for full load, 30 A at 240 V, AC-8a NO || 1000 cycles for motor load NO || 6000 cycle

Minimum Switching Capacity:

5 W at 1 A, 5 V DC || 12 VA at 1 A, 12 V AC

China Rohs Regulation:

X

Product Or Component Type:

power relay

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP2006003EN

Silicon Free:

Yes

Phenolic Free Solution:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Average Consumption:

2.6 VA

Operating Time:

20 ms

Height:

50 mm

Protection Category:

RT III

Width:

27.3 mm

[Ui] Rated Insulation Voltage:

320 V

Mechanical Durability:

10000000 cycles

Contacts Material:

silver alloy contacts

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-40 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Input Current:

30 A NO || 20 A NC

Product Certifications:

UL

Shock Resistance:

10 gn operating || 100 gn not operating

Pollution Degree:

3

Net Weight:

0.032 kg

Rohs Exemption Information:

Yes

Drop-Out Voltage Threshold:

>= 0.2 Uc

Rated Power In Va:

470 VA at 240 V, NO on pilot duty || 275 VA at 240 V, NC on pilot duty

[Uc] Control Circuit Voltage:

120 V AC 50-60 Hz

Pvc Free:

Yes

Connections - Terminals:

Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Operating Position:

any position

Mounting Support:

panel flange

Dielectric Strength:

2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

Maximum Switching Voltage:

277 V AC || 28 V DC

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Network Frequency:

50-60 Hz

Switch Function:

SPDT

Average Resistance:

2500 Ohm at 23 °C +/- 10 %

[Ie] Rated Operational Current:

30 A at 240 V AC-1 (NO) || 20 A at 240 V AC-1 (NC) || 30 A at 28 V DC (NO) (on resistive load) || 10 A at 28 V DC (NC) (on resistive load) || 22 A at 120 V AC-8a (NO) (full load) || 98 A at 120 V AC-8a (NO) (locked rotor) || 30 A at 240 V AC-8a (NO)

Lead Free:

Yes
