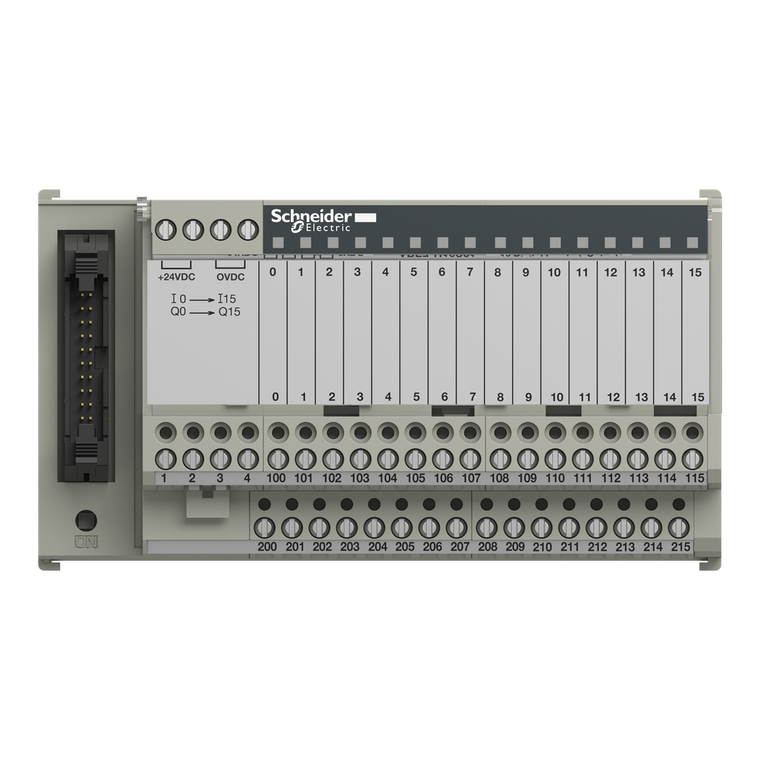

Schneider Electric ABE7H16S21 Wir Bas 16Io Led Disconn

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABE7H16S21 Wir Bas 16Io Led Disconn

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7H16S21

UPC:

3389110644517

MPN:

Condition:

New

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Connector Type:

HE-10

Range Of Product:

Modicon ABE7

Sustainable Offer Status:

Green Premium product

Channel Additional Information:

1 switch disconnector per channel

Number Of Horizontal Rows:

2

Width:

125 mm

Product Certifications:

GL || CSA || UL || DNV || EAC

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Environmental Disclosure:

ENVPEP121229EN

Installation Category:

II IEC 60664-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP2X conforming to IEC 60529

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pollution Degree:

2 IEC 60664-1

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

China Rohs Regulation:

X

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Net Weight:

0.375 kg

Short-Circuit Protection:

2 A internal fuse, 5 x 20 mm, fast blow PLC end)

Pin Number:

20 pins

Number Of Terminal Per Channel:

2

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Number Of Channels:

16

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

[Us] Rated Supply Voltage:

19...30 V IEC 61131-2

Resistance To Incandescent Wire:

750 °C IEC 60695-2-11

Voltage Drop On Power Supply Fuse:

0.3 V

Polarity Distribution:

0 V or 24 V

Circularity Profile:

ENVEOLI1212029EN

Status Led:

1 LED per channel (Green) channel status || 1 LED (Green) power ON

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Current Per Output Common:

1.8 A

Warranty:

18 months

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en

Maximum Supply Current:

1.8 A

Current Per Channel:

0.5 A

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Supply Circuit Type:

DC

Product Or Component Type:

passive discrete I/O sub-base

[Ui] Rated Insulation Voltage:

2000 V

Rohs Exemption Information:

Yes

Sub-Base Type:

I/O sub-base

Datasheet:

View
