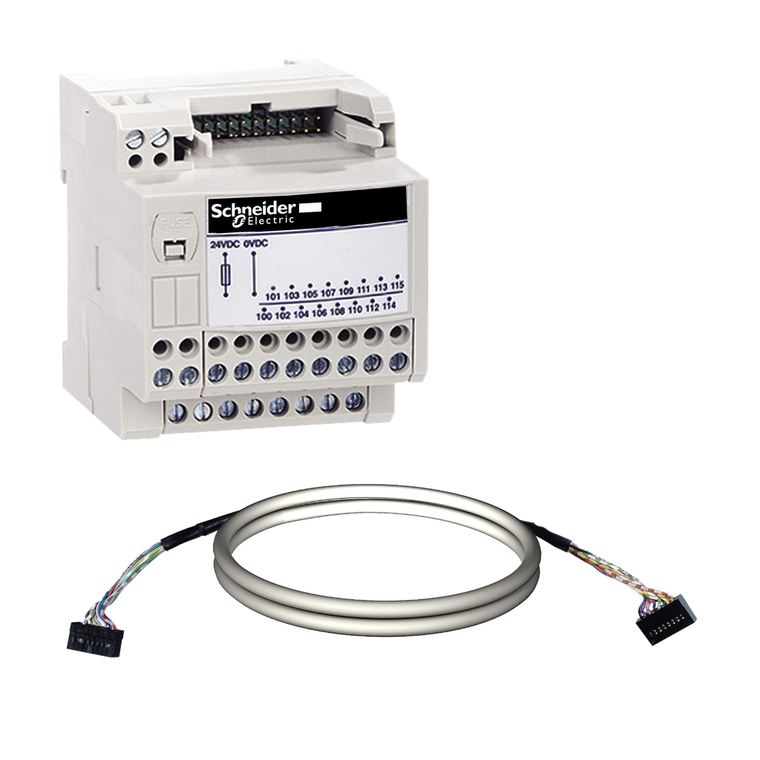

Schneider Electric ABE7H20E100 Wir Bas 16Es Cord Te 1
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive discrete I/O sub-base offers 16 channels with 1 terminal per channel. The Low cast sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.33kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. It is compatible with Modicon TSX Micro PLC and Modicon Premium PLC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
- [Ui] Rated Insulation Voltage:
- 2000 V terminals/mounting rails
- Product Certifications:
- GL || DNV || UL || CSA || EAC
- Ip Degree Of Protection:
- IP2X conforming to IEC 60529
- Resistance To Electrostatic Discharge:
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Voltage Drop On Power Supply Fuse:
- 0.3 V
- Resistance To Incandescent Wire:
- 750 °C 30 s IEC 60695-2-11
- Number Of Terminal Per Channel:
- 1
- Maximum Current Per Output Common:
- 1.8 A
- Short-Circuit Protection:
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Mercury Free:
- Yes
- Number Of Channels:
- 16
- Current Per Channel:
- 0.5 A
- Product Or Component Type:
- passive discrete I/O sub-base
- Number Of Horizontal Rows:
- 2
- Product Compatibility:
- Modicon TSX Micro PLC || Modicon Premium PLC
- [Us] Rated Supply Voltage:
- 19...30 V IEC 61131-2
- Range Of Product:
- Modicon ABE7
- Status Led:
- 1 LED (Green) power ON || 1 LED (amber) APP1
- Supply Circuit Type:
- DC
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.33 kg
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Resistance To Fast Transients:
- 2 kV level 3 IEC 61000-4-4
- Ambient Air Temperature For Operation:
- -5-60 °C IEC 61131-2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Vibration Resistance:
- 2 gn 10-150 Hz)IEC 60068-2-6
- Installation Category:
- II IEC 60664-1
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Pollution Degree:
- 2 IEC 60664-1
- Ambient Air Temperature For Storage:
- -40-80 °C IEC 61131-2
- Fixing Mode:
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Warranty:
- 18 months
- Maximum Supply Current:
- 1.8 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connections - Terminals:
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en
- Resistance To Radiated Fields:
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Tightening Torque:
- 0.6 N.m flat à 3.5 mm
- Sub-Base Type:
- low cost sub-base
