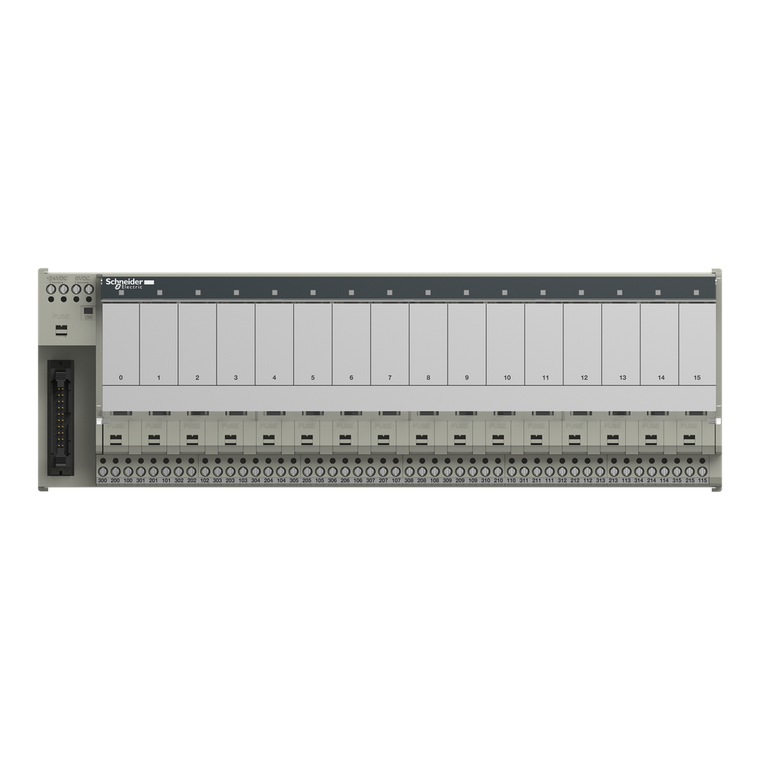

Schneider Electric ABE7P16T334 Base For Em/Ss Rels Fuse Without Com.-R

Schneider Electric ABE7P16T334 Base For Em/Ss Rels Fuse Without Com.-R

Schneider Electric
SKU:
ABE7P16T334
|
UPC:
3389110705157
Availability:
Contact us to confirm availability and lead times.
$698.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.9kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABS7A3M, ABE7ACC21, ABS7SC3E and ABR7S33 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Additional Information
China Rohs Regulation:
X
Status Led:
1 LED per channel (Green) channel status || 1 LED (Green) power ON
Resistance To Fast Transients:
2 kV level 3 IEC 61000-4-4
Circularity Profile:
ENVEOLI1212029EN
Range Of Product:
Modicon ABE7
Pollution Degree:
2 IEC 60664-1
Resistance To Electrostatic Discharge:
4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Ambient Air Temperature For Operation:
-5-60 °C IEC 61131-2
Ip Degree Of Protection:
IP2X conforming to IEC 60529
Sustainable Offer Status:
Green Premium product
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Connections - Terminals:
screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en
Vibration Resistance:
2 gn 10-150 Hz)IEC 60068-2-6
Fixing Mode:
by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque:
0.6 N.m flat Ø 3.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Short-Circuit Protection:
1 A internal fuse, 5 x 20 mm, fast blow PLC end) || 2 A fuse per channel, 5 x 20 mm, fast blow output circuit)
Sub-Base Type:
output sub-base
Net Weight:
0.9 kg
Rohs Exemption Information:
Yes
Number Of Channels:
16
Product Or Component Type:
sub-base for plug-in relay
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
19...30 V IEC 61131-2
Installation Category:
II IEC 60664-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Voltage Drop On Power Supply Fuse:
0.3 V
Product Certifications:
CSA || DNV || UL || GL || EAC
Product Compatibility:
ABS7A3M || ABE7ACC21 || ABS7SC3E || ABR7S33 || ABS7SC3..
Supply Circuit Type:
DC
Maximum Supply Current:
0.0416666666666667
Maximum Current Per Output Common:
16 A
Resistance To Radiated Fields:
10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Mercury Free:
Yes
Warranty:
18 months
[Ui] Rated Insulation Voltage:
300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails
Resistance To Incandescent Wire:
750 °C 30 s IEC 60695-2-11
Polarity Distribution:
volt-free
Ambient Air Temperature For Storage:
-40-80 °C IEC 61131-2
Environmental Disclosure:
ENVPEP121229EN
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV
