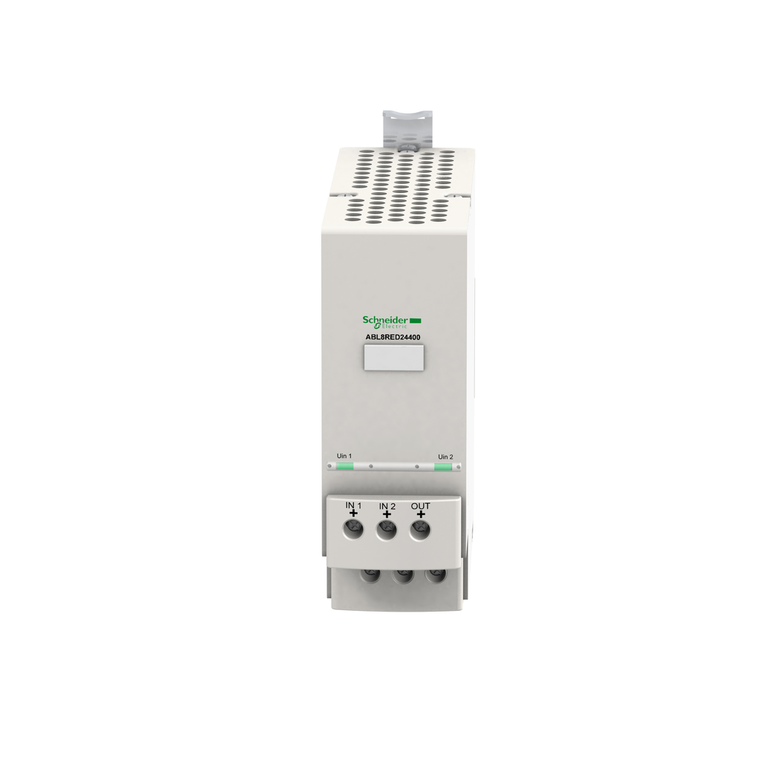

Schneider Electric ABL8RED24400 Redondancy Module 40A.

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ABL8RED24400 Redondancy Module 40A.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABL8RED24400

UPC:

3389119406871

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-25-60 °C

Name Of Test:

electrostatic discharges IEC 61000-4-2 || emission IEC 61000-6-3 || induced electromagnetic field IEC 61000-4-6 level 3 || radiated electromagnetic field IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge IEC 61000-4-5 level 2 ||

Mtbf Reliability:

2488391 H at 24 V DC with UTE C80-810 calculation method

Product Or Component Type:

redundancy module

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Output Protection Type:

against overload external protection by power supply || against short-circuits external protection by power supply

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pvc Free:

Yes

Input Voltage:

24...28.8 V DC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

0.7 kg

Connections - Terminals:

output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 || input connection screw type terminals 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 || diagnostic relay removable screw terminal block 1 x 2.5 mm² AWG 14

Output Coupling:

parallel

Input Voltage Limits:

22...30 V

Output Voltage:

(Uin-0.2) V DC

Product Certifications:

EAC || RCM

Local Signalling:

for power supply status 1 LED per input (green) || for power supply status 1 relay

Fixing Mode:

by clips 35 mm symmetrical DIN rail horizontal || by clips 35 mm symmetrical DIN rail vertical

Relative Humidity:

0-90 % during operation || 0-95 % during storage

Range Of Product:

Phaseo

Dielectric Strength:

500 V between input and ground || 500 V between output and ground

Standards:

CSA C22.2 No 60950-1 || UL 508

Input Current:

20 A

Number Of Output Channels:

1

Environmental Characteristic:

EMC IEC 61000-6-3 || EMC IEC 61000-6-2 || safety IEC 60950-1 || safety EN/IEC 61204

Overvoltage Category:

class II VDE 0106-1

Warranty:

18 months

Operating Altitude:

6561.68 ft (2000 m)

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-85 °C

China Rohs Regulation:

X

Maximum Output Current:

40 A

Rohs Exemption Information:

Yes

Vibration Resistance:

2 gn 11.9-150 Hz)IEC 61131-2 || 3.5 mm 3-11.9 Hz)IEC 61131-2

Marking:

CE
