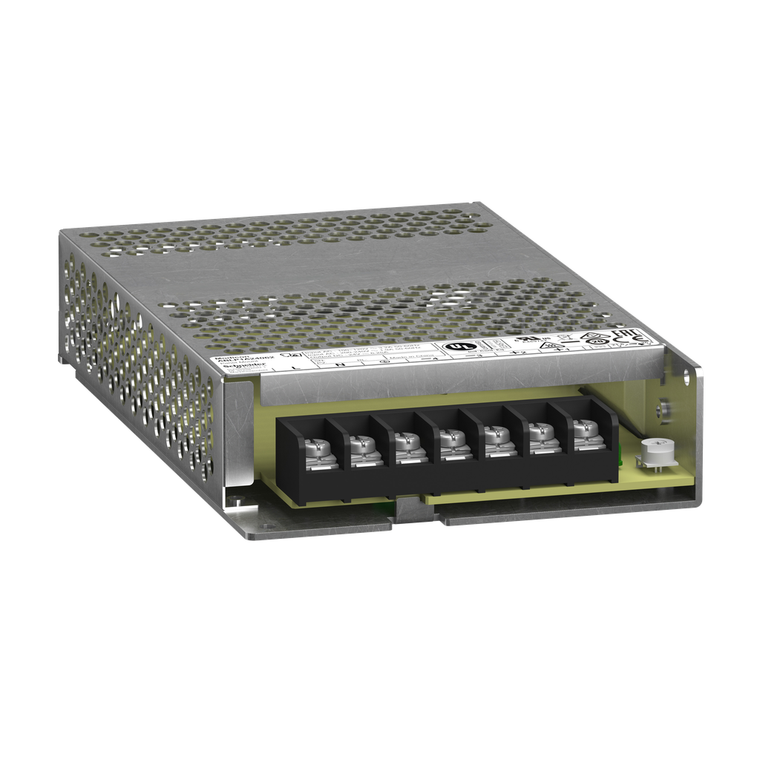

Schneider Electric ABLP1A24062 Power Supply 24V 6.2A Panel Mount

Schneider Electric ABLP1A24062 Power Supply 24V 6.2A Panel Mount

Schneider Electric
SKU:
ABLP1A24062
|
UPC:
3606481500298
$143.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 120V AC or 200 to 240V AC, a rated output current of 6.2A at 24V DC and a rated power of 150W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 159mm, its height is 30mm, its depth is 97mm. It weighs 0.360kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.
Additional Information
Efficiency:
88.8 % 230 V AC
Network Frequency Limits:
50-60 Hz
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Status Led:
1 LED (Green) output voltage
Output Voltage Limits:
21.6...26.4 V
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Electrical Shock Protection Class:
class I
Product Certifications:
CE || cULus || EAC || RCM || CB Scheme || KC
Operating Altitude:
5000 m
Dielectric Strength:
3750 V AC with input to output
Overvoltage Category:
II
Range Of Product:
Modicon Power Supply
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental Disclosure:
ENVPEP2007017EN
Enclosure Material:
Aluminum
Height:
30 mm
Width:
97 mm
Input Protection Type:
integrated fuse (not interchangeable) 4 A
Service Life:
10 year(s)
Load Capacitance:
7000 µF
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
Ip Degree Of Protection:
IP10
Power Factor:
0.55 at 115 V AC || 0.45 at 230 V AC
Product Or Component Type:
power supply
Holding Time:
> 20 ms 115 V AC || > 40 ms 230 V AC
Current Consumption:
< 3.2 A 115 V AC || < 1.9 A 230 V AC
Earthing System:
TN || TT || IT
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Efficiency At Full Load:
90...132 V AC || 170...264 V AC
Ambient Air Temperature For Operation:
-30--25 °C with current derating of 4 % per °C mounting position B, G < 6561.68 ft (2000 m) || -25-50 °C without derating mounting position B, G < 6561.68 ft (2000 m) || 50-70 °C with current derating of 2 % per °C mounting position B, G < 6561.
Residual Ripple:
< 170 mV
Connections - Terminals:
screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule || screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule
Power Dissipation In W:
29 W
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Inrush Current:
35 A 115 V || 70 A 230 V
Line And Load Regulation:
< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
Vibration Resistance:
3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
Response Time:
< 500 ms
Maximum Leakage Current:
1 mA 240 V AC
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
China Rohs Regulation:
X
Standards:
IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2
Output Voltage:
24 V DC
Meantime Between Failure [Mtbf]:
700000 h at 25 °C, full load conforming to SR 332
Power Supply Type:
regulated switch mode
Mercury Free:
Yes
Output Coupling:
parallel || serial
Pollution Degree:
2
Kw Rating:
150 W
Depth:
159 mm
Circularity Profile:
ENVEOLI2007017EN
Sustainable Offer Status:
Green Premium product
Shock Resistance:
150 m/s² 11 ms
Input Voltage:
100...120 V AC single phase || 200...240 V AC single phase
Net Weight:
0.36 kg
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Supply Output Current:
6.25 A
