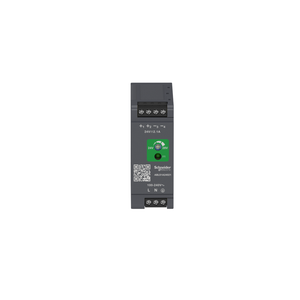

Schneider Electric ABLS1A24050 Power Supply 24V 5A 1Ph Optimized

Schneider Electric ABLS1A24050 Power Supply 24V 5A 1Ph Optimized

Schneider Electric
SKU:
ABLS1A24050
|
UPC:
3606481500236
$230.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 40mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.550kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 13A, C-Curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Additional Information
Service Life:
10 year(s)
Environmental Disclosure:
ENVPEP2007005EN
Ip Degree Of Protection:
IP20
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Height:
123.6 mm
Efficiency At Full Load:
85...264 V AC without temperature derating || 120...375 V DC without temperature derating || 85…120 V DC with temperature derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Pollution Degree:
2
Width:
40 mm
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail
Operating Altitude:
< 5000 m
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Network Frequency Limits:
50-60 Hz
Output Voltage:
24 V DC
Power Supply Type:
regulated switch mode
Power Factor:
0.55 at 115 V AC || 0.45 at 230 V AC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Enclosure Material:
Aluminum
Overvoltage Category:
II
Input Protection Type:
integrated fuse (not interchangeable) 4 A || external protection (recommended) 20 A Curve C || external protection (recommended) 13 A Curve C
Depth:
117.6 mm
Shock Resistance:
150 m/s² 11 ms
Earthing System:
TN || TT || IT
Output Voltage Limits:
22...28 V
Inrush Current:
30.0 A 115 V || 60.0 A 230 V
Status Led:
1 LED (Green) output voltage
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Product Certifications:
CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC
Power Supply Output Current:
0.208333333333333
Load Capacitance:
8000 µF
Net Weight:
0.55 kg
Line And Load Regulation:
< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C
Meantime Between Failure [Mtbf]:
700000 h at 25 °C, full load conforming to SR 332
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Power Dissipation In W:
25 W
Residual Ripple:
< 120 mV
Vibration Resistance:
3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6
Connections - Terminals:
screw connection 0.5...4 mm², AWG 20...AWG 12) without wire end ferrule output || screw connection 0.5...2.5 mm², AWG 20...AWG 14) with wire end ferrule output || screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input || sc
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Standards:
IEC 62368-1 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || CSA C22.2 No 62368-1 || UL 508 || CSA C22.2 No. 107.1 || EN/IEC 62368-1
Mercury Free:
Yes
Efficiency:
85 % 115 V AC || 88 % 230 V AC
Holding Time:
> 20 ms 115 V AC || > 40 ms 230 V AC
Current Consumption:
< 2.5 A 115 V AC || < 1.4 A 230 V AC || < 1.3 A 140 V DC
Sustainable Offer Status:
Green Premium product
Electrical Shock Protection Class:
class I
Input Voltage:
100...240 V AC single phase || 100...240 V AC phase to phase || 140...340 V DC
Response Time:
< 1 s
Maximum Leakage Current:
1 mA 240 V AC
Circularity Profile:
ENVEOLI2007005EN
Kw Rating:
120 W
Product Or Component Type:
power supply
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dielectric Strength:
3000 V AC with input to output
Output Coupling:
parallel || serial
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t
Ambient Air Temperature For Operation:
-20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m) || -10-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m) || -10-50 °C without derating mounting position A 230 V AC < 6561.68 ft (200
Range Of Product:
Modicon Power Supply
