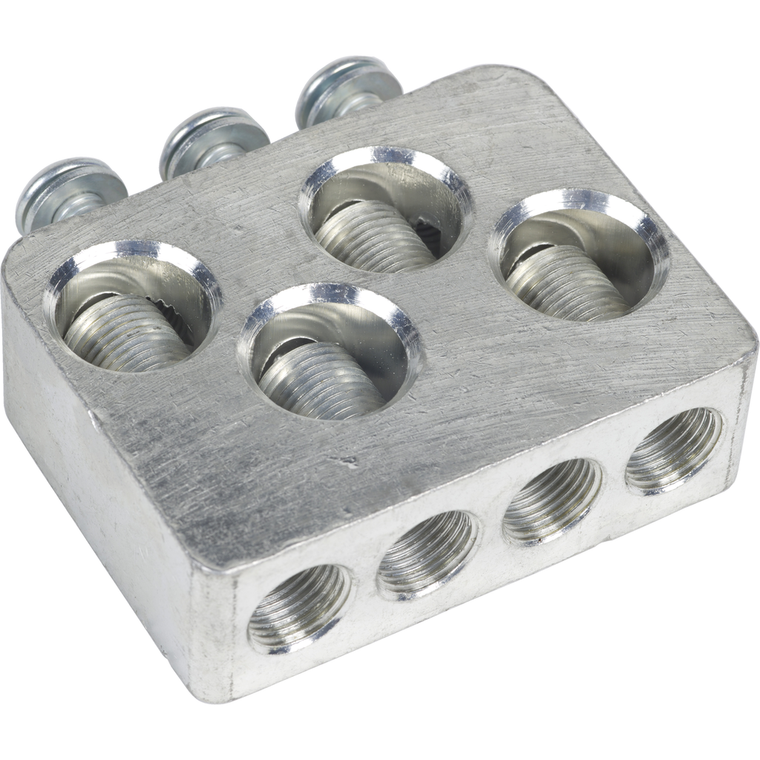

Schneider Electric AL1200R53K Circuit Breaker Mechanical Lug Kit 1
Schneider Electric
$215.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric AL1200R53K Circuit Breaker Mechanical Lug Kit 1
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT R circuit breakers. These aluminum lugs are rated to 1200A. The lugs accept 3/0 AWG to 600kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards.
- Rohs Exemption Information:
- Yes
- Range Of Product:
- PowerPact R
- Location Of Connection:
- downstream || upstream
- Pvc Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Awg Gauge:
- AWG 3/0...600 kcmil aluminium/copper
- Sustainable Offer Status:
- Green Premium product
- Kcmil Size:
- 600 kcmil
- Tightening Torque:
- 50-50 N.m 95-300 mm² (AWG 3/0...600 kcmil)
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- mechanical lug
- Quantity Per Set:
- set of 1
- Product Certifications:
- UL || CSA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Environmental Disclosure:
- ENVPEP1407012EN
- Accessory / Separate Part Category:
- connection accessory
- Circuit Breaker Type:
- PJL
- Material:
- aluminium
- Poles Description:
- 3P
- Line Rated Current:
- 1200-1200 A
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI1407012EN
