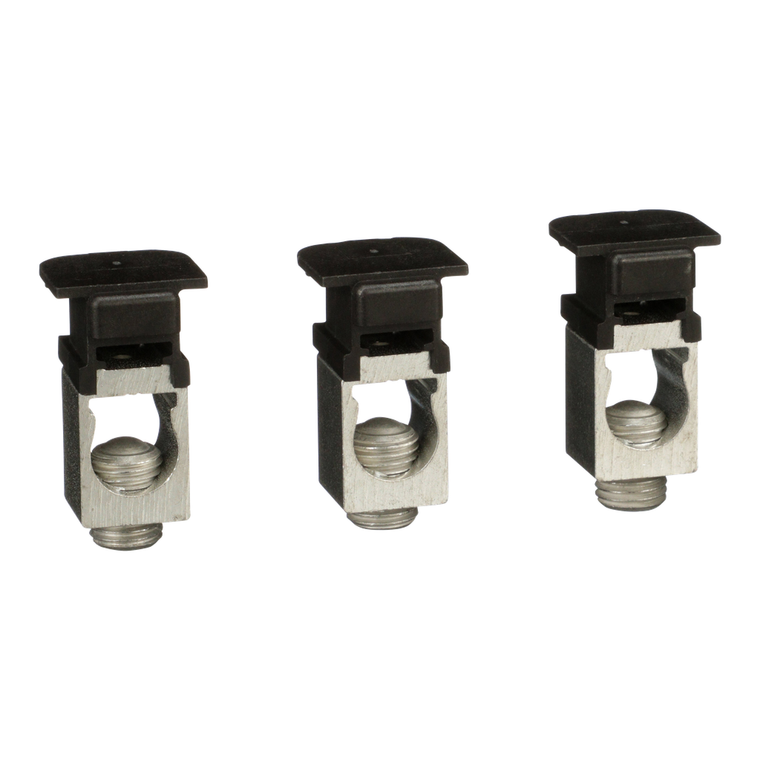

Schneider Electric AL150HD Circuit Breaker Mechanical Lug Kit 3
Schneider Electric
$75.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric AL150HD Circuit Breaker Mechanical Lug Kit 3
The M-frame, P-frame circuit breakers have mechanical lugs standard on both ends of the unit-mounted circuit breakers. T he M-frame and P-frame I-Line circuit breakers have mechanical lugs standard on the O/OFF end only. These lugs are suitable for use with copper or aluminum wire. Rear connectors, compression lugs and distribution lugs are available for special applications. Copper mechanical lugs are available for use with copper wire only. These lugs can be factory installed by adding an "LC" suffix, to the circuit breaker catalog number for standard copper lugs and "LD" suffix, for high-amp copper lugs (M-frame, P-frame circuit breakers only). This mechanical lug has a rated current of 1200A and material made of aluminum. This lug kit is rated at 500 kcmil. The mechanical lug kit complies to CSA & UL standards.
- Product Or Component Type:
- mechanical lug
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Line Rated Current:
- 150-400 A
- Depth:
- .765 in
- Sustainable Offer Status:
- Green Premium product
- Material:
- aluminium
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10)
- Location Of Connection:
- downstream
- Accessory / Separate Part Category:
- connection accessory
- Pvc Free:
- Yes
- Quantity Per Set:
- set of 4
- Environmental Disclosure:
- ENVPEP1406032EN
- Kcmil Size:
- 500 kcmil
- Height:
- 1.40 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Of Product:
- PowerPact H || PowerPact J || PowerPact L
- Circularity Profile:
- N/A
- Halogen Content Performance:
- Halogen free product
- Warranty:
- 18 months
- Product Certifications:
- UL || CSA
- Width:
- .874 in
- Mounting Mode:
- unit mount || I-Line
- Poles Description:
- 3P
