Schneider Electric AL600LF52K3 Circuit Breaker Mechanical Lug Kit 3
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

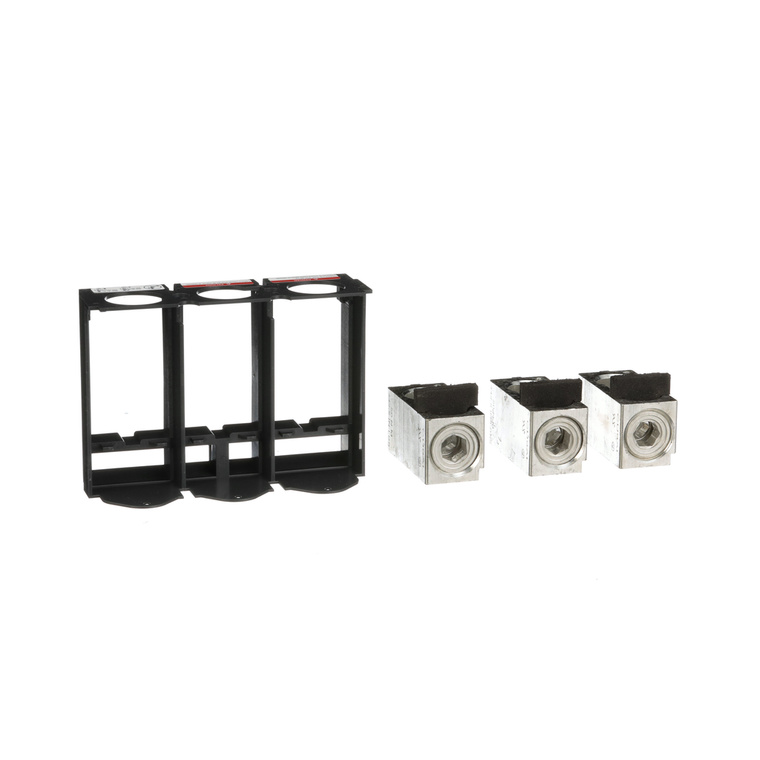

AL600LF52K3 is a PowerPact Multistandard mechanical lug for PowerPact H, J, L-Frame breakers, these mechanical lugs are made of aluminium. These lugs have a current rating of [400,600]A and come in set of 3. Certified to UL & CSA Standards. The current-limiting attributes of PowerPact H-, J-, and L-frame circuit breakers provide greater protection for downstream devices by limiting the let-through current in the event of a fault. The current-limiting capabilities of HJ/HL/HR, JJ/JL/JR, and LJ/LL/LR frame circuit breakers are documented with Underwriters Laboratories and Canadian Standards Association. These current limiting circuit breakers ship with a label that identifies them as UL/CSA Current-Limiting Circuit Breakers.
- Mounting Mode:
- by screws
- Line Rated Current:
- 400-600 A
- Cable Material:
- aluminium || copper
- Product Or Component Type:
- mechanical lug
- Range Of Product:
- PowerPact multistandard
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Warranty:
- 18 months
- Material:
- aluminium
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Kcmil Size:
- 500 kcmil
- Quantity Per Set:
- set of 3
- Circularity Profile:
- ENVEOLI1407012EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1407012EN
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Number Of Cables:
- 2
- Accessory / Separate Part Category:
- connection accessory
- Product Compatibility:
- PowerPact L-Frame
- Location Of Connection:
- upstream || downstream
- Range Compatibility:
- PowerPact PowerPact Multistandard circuit breaker
- Range:
- PowerPact
- Awg Gauge:
- AWG 3/0
- Pvc Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
