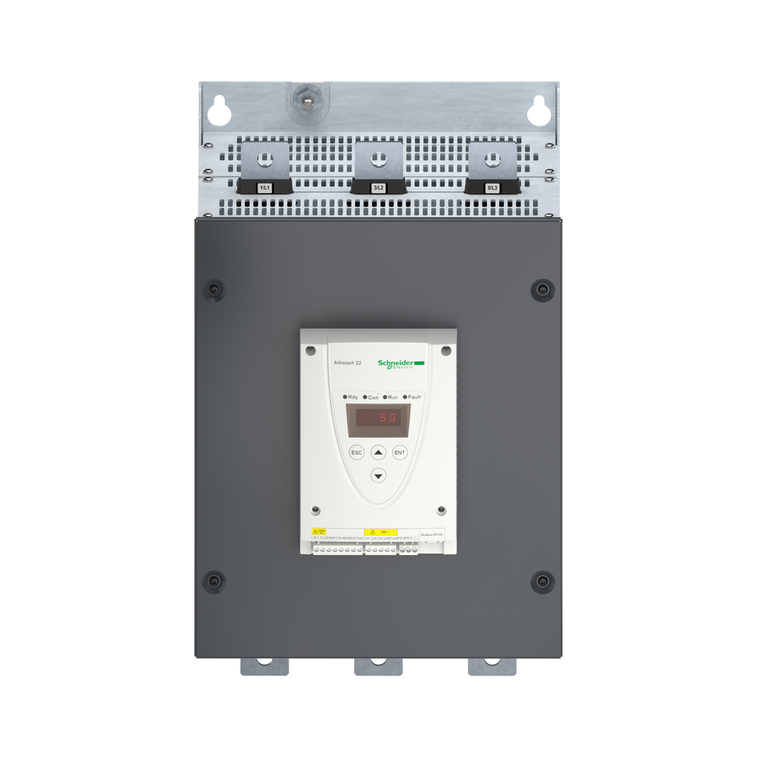

Schneider Electric ATS22C48S6 Electronic Soft Starter Control 220V Pow
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 480A, a rated power from 132kW to 315kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Output Current:
- 0.4...1 Icl adjustable
- China Rohs Regulation:
- X
- Component Name:
- ATS22
- Noise Level:
- 56 dB
- Rohs Exemption Information:
- Yes
- Marking:
- CE
- Factory Setting Current:
- 414 A
- Ambient Air Temperature For Storage:
- -25-70 °C
- Communication Port Protocol:
- Modbus
- Product Specific Application:
- pumps and fans
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
- Power Dissipation In W:
- 218 W for standard applications
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Installed Device:
- 31
- Connector Type:
- 1 RJ45
- Discrete Input Number:
- 3
- Discrete Input Type:
- LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
- Minimum Switching Current:
- 100 mA 12 V DC relay outputs)
- [Us] Rated Supply Voltage:
- 230...600 V - 15...10 %
- Maximum Switching Current:
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Product Destination:
- asynchronous motors
- Transmission Rate:
- 4800, 9600 or 19200 bps
- Control Circuit Consumption:
- 20 W
- Warranty:
- 18 months
- Width:
- 304 mm
- Product Or Component Type:
- soft starter
- Utilisation Category:
- AC-53A
- Discrete Output Number:
- 2
- Power Range:
- 110-220 kW 200-240 V 3 phase || 250-500 kW 480-500 V 3 phase || 250-500 kW 380-440 V 3 phase
- Type Of Start:
- start with torque control (current limited to 3.5 In)
- Motor Power Kw:
- 132 kW 230 V || 250 kW 400 V || 250 kW 440 V || 315 kW 500 V
- Discrete Input Logic:
- positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
- Physical Interface:
- RS485 multidrop
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
- Supply Frequency:
- 50...60 Hz - 10...10 %
- Mercury Free:
- Yes
- Function Available:
- internal bypass
- Device Connection:
- in the motor supply line
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Supply Voltage Limits:
- 195-660 V
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- level 2 IEC 60664-1
- Protection Type:
- phase failure line || thermal protection motor || thermal protection starter
- Ip Degree Of Protection:
- IP00
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Communication Data Link:
- serial
- Height:
- 455 mm
- Discrete Input Voltage:
- 24 V <= 30 V
- Range Of Product:
- Altistart 22
- Network Frequency:
- 45...66 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Assembly Style:
- with heat sink
- Phase:
- 3 phase
- [Uc] Control Circuit Voltage:
- 230 V - 15...10 % 50/60 Hz
- Standards:
- EN/IEC 60947-4-2
- Product Certifications:
- C-tick || GOST || CSA || UL || CCC
- Type Of Cooling:
- forced convection
- Motor Starter Type:
- soft starter
- Electromagnetic Compatibility:
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
- Ptc Probe Input:
- 750 Ohm
- Relative Humidity:
- 0-95 % without condensation or dripping water EN/IEC 60068-2-3
- Operating Position:
- vertical +/- 10 degree
- Discrete Output Type:
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Depth:
- 339.7 mm
- Icl Starter Rating:
- 480 A connection in the motor supply line for standard applications
- Net Weight:
- 50 kg
