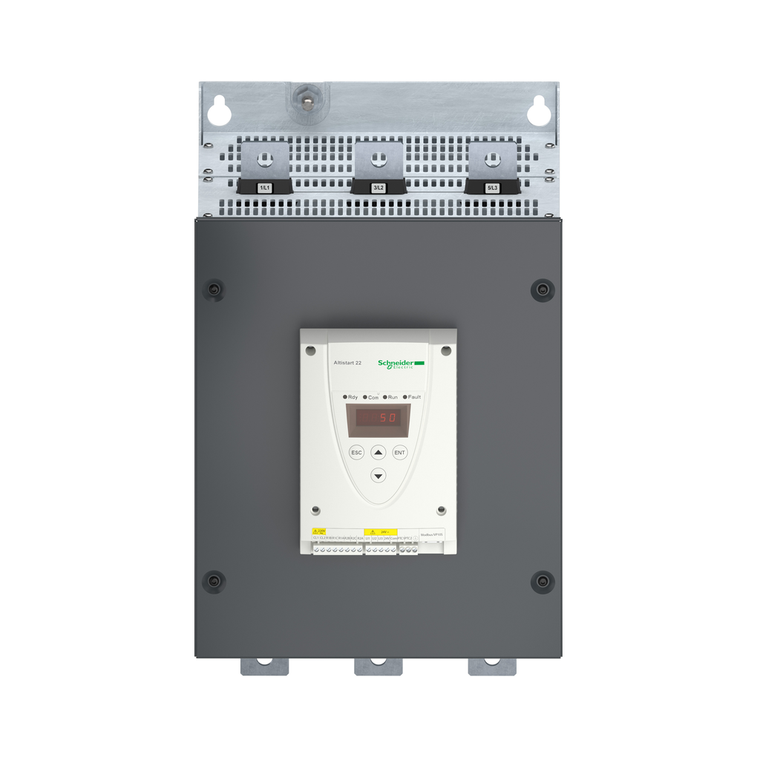

Schneider Electric ATS22C59S6U Electronic Soft Starter Control 110V Pow

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATS22C59S6U Electronic Soft Starter Control 110V Pow

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22C59S6U

UPC:

3606480211249

MPN:

Condition:

New

Supply Voltage Limits:

177-660 V

Product Specific Application:

pumps and fans

Mercury Free:

Yes

Depth:

339.7 mm

Type Of Cooling:

forced convection

Icl Starter Rating:

590 A connection in the motor supply line for standard applications

Range Of Product:

Altistart 22

Product Certifications:

GOST || C-tick || UL || CSA || CCC

Ip Degree Of Protection:

IP00

Height:

455 mm

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Physical Interface:

RS485 multidrop

Shock Resistance:

15 gn 11 ms EN/IEC 60068-2-27

Width:

304 mm

Utilisation Category:

AC-53A

[Uc] Control Circuit Voltage:

110 V - 15...10 % 50/60 Hz

Communication Data Link:

serial

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ptc Probe Input:

750 Ohm

Operating Position:

vertical +/- 10 degree

Type Of Start:

start with torque control (current limited to 3.5 In)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6

Transmission Rate:

4800, 9600 or 19200 bps

Device Connection:

in the motor supply line

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Input Number:

3

Network Frequency:

45...66 Hz

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA

Product Or Component Type:

soft starter

Assembly Style:

with heat sink

Relative Humidity:

0-95 % without condensation or dripping water EN/IEC 60068-2-3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Standards:

EN/IEC 60947-4-2

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Factory Setting Current:

477 A

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Net Weight:

50 kg

Communication Port Protocol:

Modbus

Installed Device:

31

Pollution Degree:

level 2 IEC 60664-1

Component Name:

ATS22

Warranty:

18 months

Discrete Input Voltage:

110 V <= 121 V

[Us] Rated Supply Voltage:

208...600 V - 15...10 %

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Connector Type:

1 RJ45

Ambient Air Temperature For Storage:

-25-70 °C

Noise Level:

56 dB

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

Output Current:

0.4...1 Icl adjustable

China Rohs Regulation:

X

Marking:

CE

Discrete Output Number:

2

Control Circuit Consumption:

20 W

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 20 kOhm

Phase:

3 phase

Product Destination:

asynchronous motors

Power Dissipation In W:

251 W for standard applications

Supply Frequency:

50...60 Hz - 10...10 %

Maximum Horse Power Rating:

200 hp 230 V || 400 hp 460 V || 500 hp 575 V

Function Available:

internal bypass

Rohs Exemption Information:

Yes

Brochure:

View

Catalog:

View
