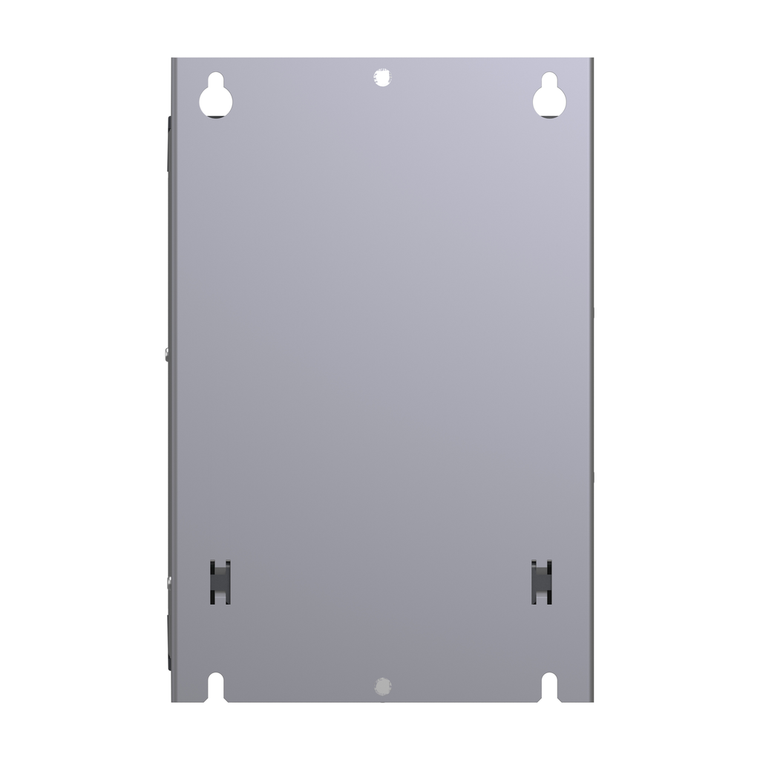

Schneider Electric ATS480C11Y Soft Starter Ats480 110A 208 To 690V

Schneider Electric ATS480C11Y Soft Starter Ats480 110A 208 To 690V

Schneider Electric
SKU:
ATS480C11Y
|
UPC:
3.60648E+12
$2,421.24
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 110A in normal duty, it supplies motor from 30kW to 90kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH. test1
Additional Information
Mercury Free:
Yes
Relay Output Type:
relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
Integrated Motor Overload Protection:
TRUE
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Deflection Under Vibratory Load (During Transport):
1.75 mm at 2...9 Hz
Power Loss Per Device Current Dependent:
302.0 W
Standards:
IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
Height:
290.0 mm
Type Of Polarization:
no impedance Modbus serial
Communication Port Protocol:
Modbus serial
Phase:
3 phase
Transmission Frame:
RTU
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Destination:
asynchronous motors
Power Loss Static Current Independent:
25.0 W
[In] Rated Current Pwr Loss Specifctn:
110.0 A
Maximum Acceleration Under Vibratory Load (During Transport):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Apparent Power:
0.09 kVA
Width:
190.0 mm
Discrete Output Type:
DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
Product Specific Application:
process and infrastructures
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica
Analogue Input Number:
1
Ip Degree Of Protection:
IP20
Maximum Switching Current:
relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
Discrete Output Number:
2
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Number Of Addresses:
0-227 Modbus serial
Connector Type:
1 RJ45
Operating Position:
vertical +/- 10 degree
Maximum Acceleration Under Shock Load (During Storage):
100 m/s² at 11 ms
Analogue Output Number:
1
Product Certifications:
CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
Function Available:
external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
Maximum Acceleration Under Shock Load (During Transport):
100 m/s² at 11 ms
Sustainable Offer Status:
Green Premium product
Torque Control:
TRUE
Ambient Air Temperature For Operation:
40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
Discrete Input Number:
4
Pollution Degree:
level 3
Physical Interface:
2-wire RS 485
Environmental Disclosure:
ENVPEP2009021EN
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Device Short Name:
ATS480
Upgradeability:
Upgraded components available
Utilisation Category:
AC-3A || AC-53A
Range Of Product:
Altivar Soft Starter ATS480
Marking:
CE || CCC || UKCA || EAC || RCM || cULus
Accuracy Class:
class 10E
Transmission Rate:
1200...256000 bit/s
Analogue Output Type:
current output AQ1 0...20 mA or 0...10 V 500 Ohm
Product Or Component Type:
soft starter
Ambient Air Temperature For Storage:
-25-70 °C
Minimum Switching Current:
100 mA 12 V DC relay outputs
Communication Data Link:
serial
Display Screen Available:
TRUE
Maximum Permanent Current:
88.0 A at 40 °C heavy duty
Data Format:
8 bits, configurable odd, even or no parity
Maximum Deflection Under Vibratory Load (During Storage):
1.75 mm at 2...9 Hz
Supply Frequency:
50...60 Hz - 20...20 %
Output Current Drift:
150-700 %
China Rohs Regulation:
X
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Depth:
247.0 mm
[Uc] Control Circuit Voltage:
110...250 V AC 50/60 Hz - 15...10 %
Discrete Input Type:
STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
[Us] Rated Supply Voltage:
208...690 V - 15...10 %
Circularity Profile:
ENVEOLI2009021EN
[Ui] Rated Insulation Voltage:
690 V
Device Connection:
in the motor supply line || to the motor delta terminals
Protection Type:
phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl
Maximum Horse Power Rating:
30.0 hp 208 V normal duty || 25.0 hp 208 V heavy duty || 40.0 hp 230 V normal duty || 30.0 hp 230 V heavy duty || 75.0 hp 460 V normal duty || 60.0 hp 460 V heavy duty || 100.0 hp 575 V normal duty || 75.0 hp 575 V heavy duty
Maximum Acceleration Under Vibratory Load (During Storage):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
[Ie] Rated Operational Current:
normal duty 110.0 A 40 °C)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relative Humidity:
0-95 % without condensation or dripping water IEC 60068-2-3
Option Card:
communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Motor Power Kw:
30.0 kW 230 V in the motor supply line normal duty || 22.0 kW 230 V in the motor supply line heavy duty || 55.0 kW 400 V in the motor supply line normal duty || 45.0 kW 400 V in the motor supply line heavy duty || 55.0 kW 440 V in the motor supply li
Net Weight:
8.3 kg
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Method Of Access:
slave Modbus serial
Rohs Exemption Information:
Yes
Discrete Input Logic:
programmable digital input < 5 V
Relay Output Number:
3
