Schneider Electric ATV12P075M2 Atv12 0.75Kw 240V 1Ph Base Plate Tb
Schneider Electric
$336.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

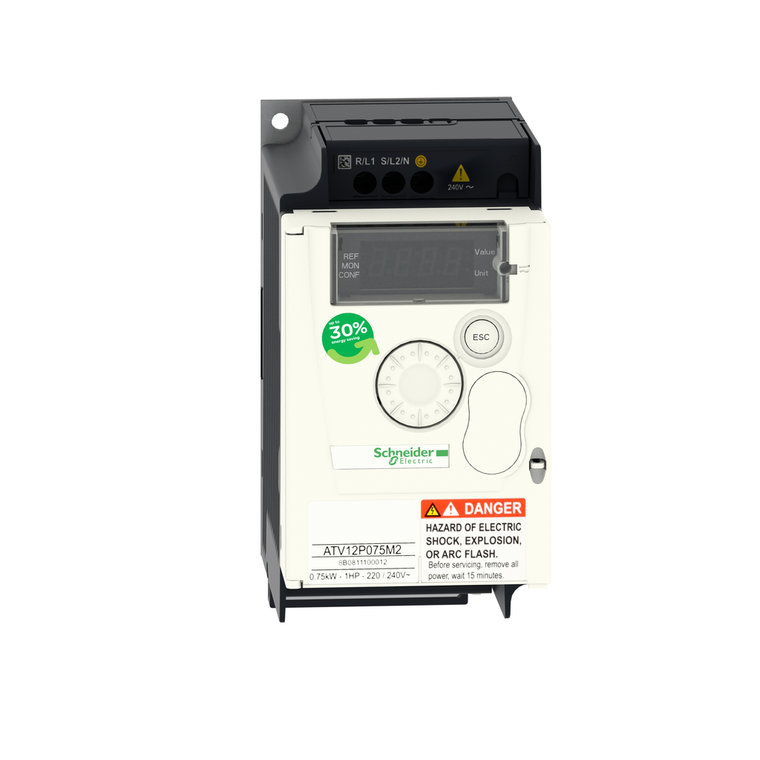

Schneider Electric ATV12P075M2 Atv12 0.75Kw 240V 1Ph Base Plate Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine frame. The frame surface area should allow heat to dissipate. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. The ATV12 range meets basic machine requirements united with simplicity.
- Height:
- 143 mm
- Discrete Input Number:
- 4
- Motor Power Kw:
- 0.75 kW
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Pollution Degree:
- 2
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- China Rohs Regulation:
- X
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Mercury Free:
- Yes
- Noise Level:
- 0 dB
- Insulation:
- electrical between power and control
- Motor Slip Compensation:
- preset in factory || adjustable
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Network Frequency:
- 50-60 Hz
- Connector Type:
- 1 RJ45
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Continuous Output Current:
- 4.2 A 4 kHz
- With Safety Function Safe Position (Sp):
- FALSE
- Emc Filter:
- integrated
- Analogue Output Number:
- 1
- Product Specific Application:
- simple machine
- Rohs Exemption Information:
- Yes
- Physical Interface:
- 2-wire RS 485
- 4 Quadrant Operation Possible:
- FALSE
- Prospective Line Isc:
- 1 kA
- Overvoltage Category:
- class III
- Mounting Mode:
- cabinet mount
- Range Of Product:
- Altivar 12
- Transmission Frame:
- RTU
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
- Ambient Air Transport Temperature:
- -25-70 °C
- Power Dissipation In W:
- natural 44.0 W
- Apparent Power:
- 2.0 kVA 240 V heavy duty)
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Tightening Torque:
- 0.8 N.m
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ip Degree Of Protection:
- IP20
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Number Of Addresses:
- 1-247
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- With Safety Function Safe Programmable Logic:
- FALSE
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Data Format:
- 8 bits, configurable odd, even or no parity
- Relay Output Number:
- 1
- Asynchronous Motor Control Profile:
- sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
- Communication Port Protocol:
- Modbus
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Net Weight:
- 0.7 kg
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Maximum Transient Current:
- 6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Method Of Access:
- server Modbus serial
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Nominal Switching Frequency:
- 4 kHz
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Horse Power Rating:
- 1 hp
- With Safety Function Safe Direction (Sdi):
- FALSE
- Assembly Style:
- on base plate
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Regulation Loop:
- adjustable PID regulator
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Quantity Per Set:
- set of 1
- Nominal Output Current:
- 4.2 A
- Line Current:
- 10.2 A 100 V heavy duty) || 8.5 A 120 V heavy duty)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Maximum Output Frequency:
- 4 kHz
- Acceleration And Deceleration Ramps:
- S || U || linear from 0 to 999.9 s
- Warranty:
- 18 months
- Operating Altitude:
- > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Product Or Component Type:
- variable speed drive
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Type Of Polarization:
- no impedance
- Discrete Output Number:
- 2
- Maximum Output Voltage:
- 240 V
- Width:
- 72 mm
- Depth:
- 102.2 mm
- Marking:
- CE
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Braking To Standstill:
- by DC injection
- Analogue Input Number:
- 1
- Speed Range:
- 45311
- Base Load Current At High Overload:
- 4.2 A
- Brake Chopper Integrated:
- FALSE
- Time Constant:
- 20 ms +/- 1 ms for reference change
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Speed Drive Output Frequency:
- 0.5-400 Hz
