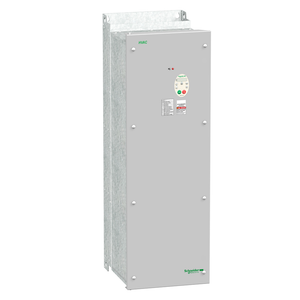

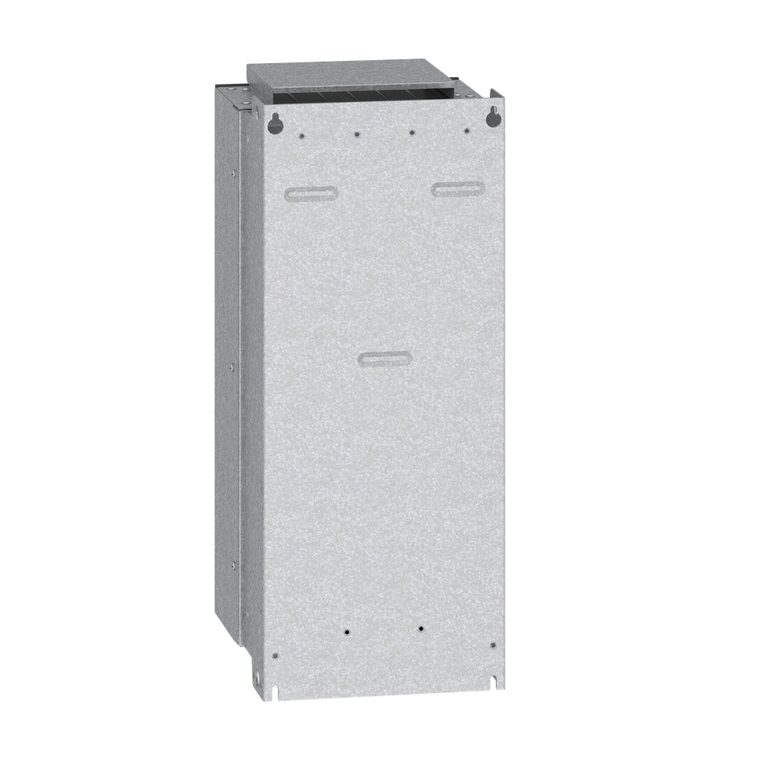

Schneider Electric ATV212HD37N4 Atv212 37Kw 50Hp 460V Tri Ip20 Variable

Schneider Electric ATV212HD37N4 Atv212 37Kw 50Hp 460V Tri Ip20 Variable

Schneider Electric
SKU:
ATV212HD37N4
|
UPC:
3606480322563
$4,832.33
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 37kW / 50hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 38.1kg and its dimensions are, 240mm wide, 550mm high, 244mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Network Frequency:
47.5...63 Hz
Speed Drive Output Frequency:
0.5-200 Hz
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Prospective Line Isc:
22 kA
Power Dissipation In W:
976 W
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Transmission Frame:
RTU
Nominal Switching Frequency:
8 kHz
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Noise Level:
64 dB 86/188/EEC
Product Certifications:
UL || NOM 117 || C-tick || CSA
Rohs Exemption Information:
Yes
Option Card:
communication card LonWorks
Physical Interface:
2-wire RS 485
Product Specific Application:
pumps and fans in HVAC
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Phase:
3 phase
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Torque Accuracy:
+/- 15 %
Number Of Addresses:
1-247
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Standards:
IEC 61800-3 environments 2 category C1 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 category C3 || IEC 61800-3 category C2 || IEC 61800-3 || IEC 61800-3 environments 1 category C1 || IEC 61800-5-1 || EN 61800-3 category C3 || IEC 61800-3
Power Range:
30-50 kW 380-440 V 3 phase || 30-50 kW 480-500 V 3 phase
Motor Power Kw:
37 kW
Communication Port Protocol:
METASYS N2 || BACnet || Modbus || APOGEE FLN || LonWorks
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Speed Range:
45301
Ambient Air Temperature For Storage:
-25-70 °C
Continuous Output Current:
79 A 380 V || 79 A 460 V
Air Flow:
334 m3/h
Braking To Standstill:
by DC injection
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Motor Starter Type:
variable speed drive
Assembly Style:
with heat sink
Height:
550 mm
Analogue Input Number:
2
Asynchronous Motor Control Profile:
flux vector control without sensor, standard || voltage/frequency ratio, 5 points || voltage/frequency ratio, 2 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Type Of Polarization:
no impedance
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Current:
68.9 A 380 V || 54.4 A 480 V
Regulation Loop:
adjustable PI regulator
Output Voltage:
<= power supply voltage
Sustainable Offer Status:
Green Premium product
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Product Destination:
asynchronous motors
Operating Position:
vertical +/- 10 degree
Range Of Product:
Altivar 212
Connector Type:
1 open style || 1 RJ45
Environmental Disclosure:
ENVPEP110404EN
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Specific Application:
HVAC
Apparent Power:
52 kVA 380 V
Marking:
CE
Pollution Degree:
3 IEC 61800-5-1
Width:
240 mm
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Warranty:
18 months
Isolation:
electrical between power and control
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0
Local Signalling:
for DC bus energized 1 LED (red)
China Rohs Regulation:
X
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits:
323-528 V
Mercury Free:
Yes
Discrete Output Number:
2
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Transmission Rate:
9600 bps or 19200 bps
Functionality:
mid
Ip Degree Of Protection:
IP21
Circularity Profile:
ENVEOLI110402EN
Analogue Output Number:
1
Maximum Transient Current:
86.9 A 60 s
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Emc Filter:
Class C2 EMC filter integrated
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Depth:
244 mm
Device Short Name:
ATV212
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Product Or Component Type:
variable speed drive
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Supply Frequency:
50...60 Hz - 5...5 %
Maximum Horse Power Rating:
50 hp
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Communication Service:
read holding registers (03) 2 words maximum || monitoring inhibitable || write single register (06) || write multiple registers (16) 2 words maximum || time out setting from 0.1 to 100 s || read device identification (43)
