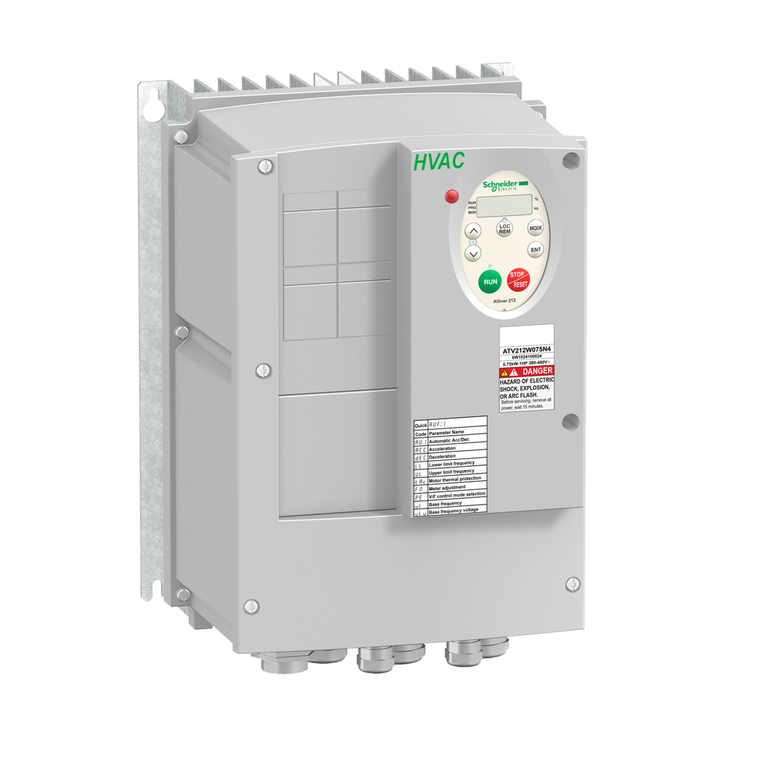

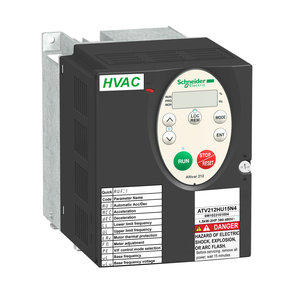

Schneider Electric ATV212WU22N4 Atv212 2,2Kw 3Hp 480V Tri Cem Ip55
Schneider Electric
$1,037.59
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 7kg and its dimensions are, 215mm wide, 297mm high, 192mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
- Frequency Resolution:
- display unit 0.1 Hz || analog input 0.024/50 Hz
- Electrical Connection:
- VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operating Altitude:
- 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Type Of Cable:
- without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
- Discrete Output Type:
- configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
- [Us] Rated Supply Voltage:
- 380...480 V - 15...10 %
- Mercury Free:
- Yes
- Tightening Torque:
- 1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
- Specific Application:
- HVAC
- Analogue Input Number:
- 2
- Local Signalling:
- for DC bus energized 1 LED (red)
- Response Time:
- FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
- Transient Overtorque:
- 120-120 % of nominal motor torque +/- 10 % 60 s
- Linearity Error:
- VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
- Dielectric Strength:
- 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
- Protection Type:
- overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
- Maximum Switching Current:
- 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 2 points || flux vector control without sensor, standard || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 5 point
- Ip Degree Of Protection:
- IP55
- Maximum Transient Current:
- 5.6 A 60 s
- Vibration Resistance:
- 1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
- Range Of Product:
- Altivar 212
- Circularity Profile:
- ENVEOLI111234EN
- Switching Frequency:
- 6...16 kHz adjustable || 12...16 kHz with derating factor
- Width:
- 215 mm
- Regulation Loop:
- adjustable PI regulator
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Minimum Switching Current:
- 3 mA 24 V DC configurable relay logic
- Motor Power Kw:
- 2.2 kW
- Height:
- 297 mm
- Sustainable Offer Status:
- Green Premium product
- Acceleration And Deceleration Ramps:
- linear adjustable separately from 0.01 to 3200 s || automatic based on the load
- Product Specific Application:
- pumps and fans in HVAC
- Speed Range:
- 45301
- Nominal Switching Frequency:
- 12 kHz
- Discrete Input Logic:
- positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
- Environmental Disclosure:
- ENVPEP111228EN
- Network Frequency:
- 47.5...63 Hz
- China Rohs Regulation:
- X
- Braking To Standstill:
- by DC injection
- Standards:
- EN 55011 class A group 1 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 2 category C3 || EN 61800-3 category C3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3
- Noise Level:
- 48 dB 86/188/EEC
- Emc Filter:
- Class C2 EMC filter integrated
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Torque Accuracy:
- +/- 15 %
- Pollution Degree:
- 3 IEC 61800-5-1
- Rohs Exemption Information:
- Yes
- Net Weight:
- 7 kg
- Line Current:
- 3.6 A 480 V || 4.6 A 380 V
- Accuracy:
- +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
- Analogue Output Type:
- FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
- Communication Port Protocol:
- LonWorks || BACnet || METASYS N2 || Modbus || APOGEE FLN
- Apparent Power:
- 3.9 kVA 380 V
- Data Format:
- 8 bits, 1 stop, odd even or no configurable parity
- Phase:
- 3 phase
- Physical Interface:
- 2-wire RS 485
- Product Destination:
- asynchronous motors
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Position:
- vertical +/- 10 degree
- Communication Service:
- monitoring inhibitable || write single register (06) || read device identification (43) || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || time out setting from 0.1 to 100 s
- Assembly Style:
- with heat sink
- Transmission Rate:
- 9600 bps or 19200 bps
- Functionality:
- mid
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Insulation Resistance:
- >= 1 mOhm 500 V DC for 1 minute
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Product Or Component Type:
- variable speed drive
- Isolation:
- electrical between power and control
- Depth:
- 192 mm
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Supply:
- internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with derating factor)
- Device Short Name:
- ATV212
- Discrete Input Type:
- F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
- Prospective Line Isc:
- 5 kA
- Supply Voltage Limits:
- 323-528 V
- Continuous Output Current:
- 5.1 A 380 V || 5.1 A 460 V
- Product Certifications:
- C-tick || CSA || NOM 117 || UL
- Discrete Output Number:
- 2
- Type Of Polarization:
- no impedance
- Analogue Output Number:
- 1
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
- Maximum Horse Power Rating:
- 3 hp
- Motor Slip Compensation:
- automatic whatever the load || not available in voltage/frequency ratio motor control || adjustable
- Number Of Addresses:
- 1-247
- Output Voltage:
- <= power supply voltage
- Warranty:
- 18 months
- Connector Type:
- 1 RJ45 || 1 open style
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Option Card:
- communication card LonWorks
- Ip Degree Of Protection:
- IP55 IEC 61800-5-1 || IP55 IEC 60529
- Sampling Duration:
- 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
- Analogue Input Type:
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- Marking:
- CE
- Speed Drive Output Frequency:
- 0.5-200 Hz
- Ambient Air Temperature For Storage:
- -25-70 °C
- Transmission Frame:
- RTU
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
