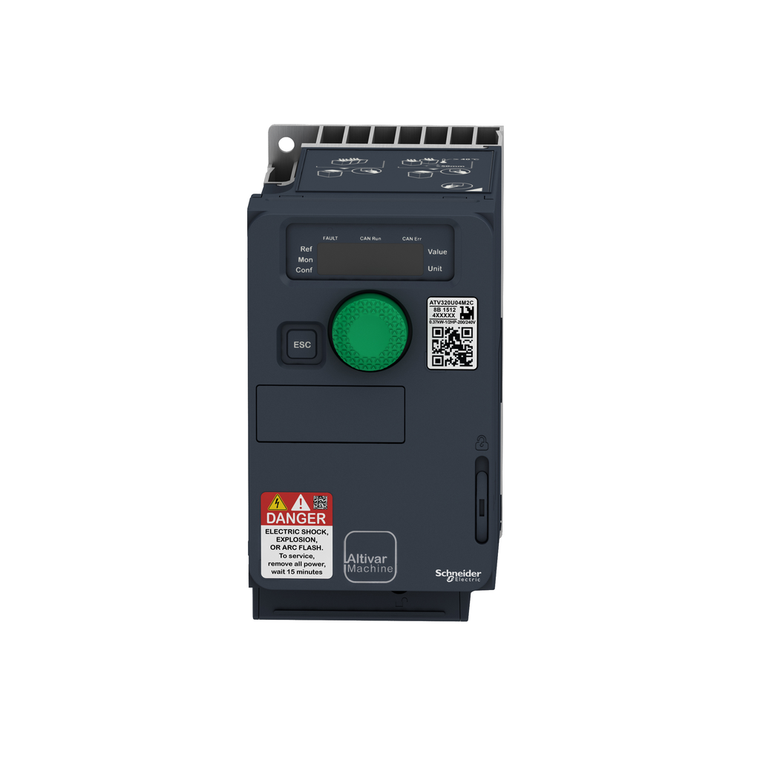

Schneider Electric ATV320U04M2C Atv320 0,37Kw 200V 1Ph Compact Control V

Schneider Electric ATV320U04M2C Atv320 0,37Kw 200V 1Ph Compact Control V

Schneider Electric
SKU:
ATV320U04M2C
|
UPC:
3606480966521
$430.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.37kW / 0.5hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Additional Information
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Circularity Profile:
ENVEOLI1601008EN
Product Or Component Type:
variable speed drive
With Safety Function Safe Stop 1 (Ss1):
TRUE
Pollution Degree:
2
Nominal Output Current:
3.3 A
With Safety Function Safely Limited Speed (Sls):
TRUE
Product Specific Application:
complex machines
Mounting Mode:
wall mount
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Analogue Output Number:
1
Discrete Input Logic:
positive logic (source) || negative logic (sink)
Operating Position:
vertical +/- 10 degree
Power Dissipation In W:
self-cooled 30 W 200 V 4 kHz
Range Of Product:
Altivar Machine ATV320
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Communication Port Protocol:
Modbus serial || CANopen
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Ip Degree Of Protection:
IP20
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Mercury Free:
Yes
Depth:
128.0 mm
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Width:
72.0 mm
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Ambient Air Transport Temperature:
-25-70 °C
Rohs Exemption Information:
Yes
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Analogue Input Number:
3
Braking To Standstill:
by DC injection
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
With Safety Function Safe Operating Stop (Sos):
FALSE
Synchronous Motor Control Profile:
vector control without sensor
Discrete Output Number:
3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Method Of Access:
slave CANopen
China Rohs Regulation:
X
Regulation Loop:
adjustable PID regulator
Line Current:
5.9 A 200 V heavy duty) || 4.9 A 240 V heavy duty)
Brake Chopper Integrated:
TRUE
4 Quadrant Operation Possible:
TRUE
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
Standards:
IEC 61800-5-1
Ambient Air Temperature For Operation:
-10-50 °C without derating || 50-60 °C with derating factor
Format Of The Drive:
compact
With Safety Function Safe Position (Sp):
FALSE
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Nominal Switching Frequency:
4 kHz
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Environmental Disclosure:
ENVPEP1601008EN
Overvoltage Category:
III
With Safety Function Safe Programmable Logic:
FALSE
Maximum Output Frequency:
0.599 kHz
Height:
143.0 mm
Transient Overtorque:
170-200 % of nominal motor torque
Base Load Current At High Overload:
3.7 A
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Emc Filter:
Class C2 EMC filter integrated
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Apparent Power:
1.2 kVA 240 V heavy duty)
Ambient Air Temperature For Storage:
-25-70 °C
With Safety Function Safe Torque Off (Sto):
TRUE
With Safety Function Safe Direction (Sdi):
FALSE
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Variant:
standard version
With Safety Function Safely Limited Position (Slp):
FALSE
Discrete Input Number:
7
Sustainable Offer Status:
Green Premium product
Marking:
CE || ATEX || UL || CSA || EAC || RCM
Maximum Output Voltage:
240 V
Network Frequency:
50-60 Hz
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Net Weight:
1 kg
Relative Symmetric Network Frequency Tolerance:
0.05
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Motor Power Kw:
0.37 kW heavy duty
Upgradeability:
Upgraded components available
Prospective Line Isc:
1 kA
