Schneider Electric ATV320U11N4C Atv320 Compact 1.1Kw - 3Ph - 380/500V
Schneider Electric
$673.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

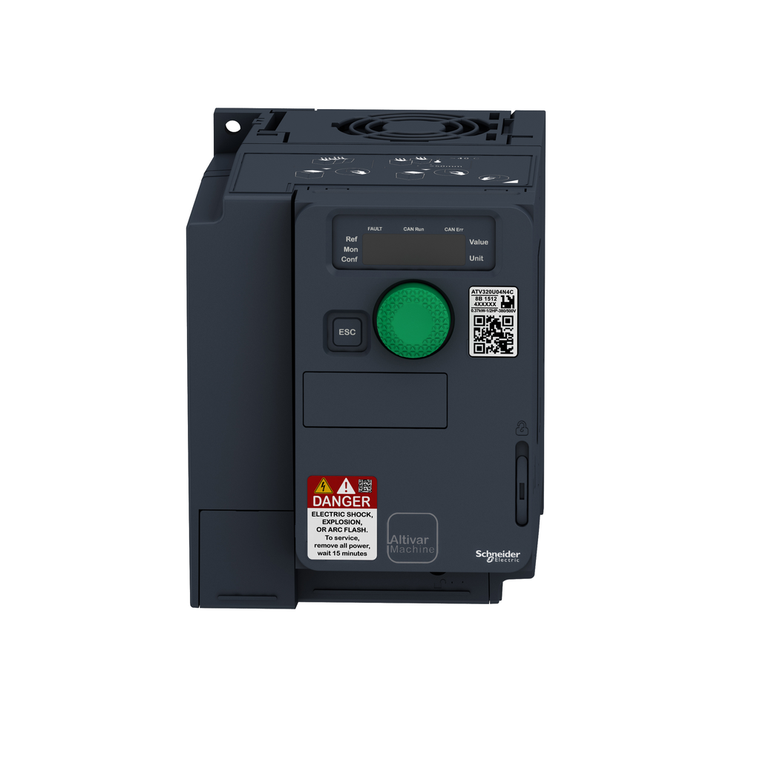

Schneider Electric ATV320U11N4C Atv320 Compact 1.1Kw - 3Ph - 380/500V
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 1.1kW / 1.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Discrete Input Number:
- 7
- Protection Type:
- input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
- Brake Chopper Integrated:
- TRUE
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Communication Port Protocol:
- Modbus serial || CANopen
- Prospective Line Isc:
- 5 kA
- Environmental Disclosure:
- ENVPEP1512003EN
- Overvoltage Category:
- III
- Rohs Exemption Information:
- Yes
- Net Weight:
- 1.3 kg
- Braking To Standstill:
- by DC injection
- Transient Overtorque:
- 170-200 % of nominal motor torque
- Relay Output Type:
- configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Marking:
- CE || ATEX || UL || CSA || EAC || RCM
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Analogue Output Number:
- 1
- Product Specific Application:
- complex machines
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- With Safety Function Safe Torque Off (Sto):
- TRUE
- Motor Slip Compensation:
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- Width:
- 105.0 mm
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- With Safety Function Safely Limited Speed (Sls):
- TRUE
- Maximum Output Voltage:
- 500 V
- Ip Degree Of Protection:
- IP20
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Acceleration And Deceleration Ramps:
- linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Motor Power Kw:
- 1.1 kW heavy duty
- Option Card:
- communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
- Discrete Input Type:
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Synchronous Motor Control Profile:
- vector control without sensor
- Discrete Input Logic:
- positive logic (source) || negative logic (sink)
- Mounting Mode:
- wall mount
- With Safety Function Safe Direction (Sdi):
- FALSE
- Asynchronous Motor Control Profile:
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- With Safety Function Safely Limited Position (Slp):
- FALSE
- With Safety Function Safe Programmable Logic:
- FALSE
- Line Current:
- 5.0 A 380 V heavy duty) || 3.8 A 500 V heavy duty)
- Format Of The Drive:
- compact
- Apparent Power:
- 3.3 kVA 500 V heavy duty)
- Analogue Input Type:
- AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Maximum Switching Current:
- relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safe Position (Sp):
- FALSE
- 4 Quadrant Operation Possible:
- TRUE
- Permitted Relative Humidity (During Operation):
- class 3K5 according to EN 60721-3
- Base Load Current At High Overload:
- 22.0 A
- Nominal Switching Frequency:
- 4 kHz
- Emc Filter:
- Class C2 EMC filter integrated
- Analogue Output Type:
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Product Or Component Type:
- variable speed drive
- Ambient Air Temperature For Storage:
- -25-70 °C
- Upgradeability:
- Upgraded components available
- With Safety Function Safe Stop 1 (Ss1):
- TRUE
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Ambient Air Transport Temperature:
- -25-70 °C
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Analogue Input Number:
- 3
- Pollution Degree:
- 2
- Network Frequency:
- 50-60 Hz
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Regulation Loop:
- adjustable PID regulator
- Maximum Output Frequency:
- 0.599 kHz
- Variant:
- standard version
- Circularity Profile:
- ENVEOLI1512003EN
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with derating factor
- Minimum Switching Current:
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- [Us] Rated Supply Voltage:
- 380...500 V - 15...10 %
- Range Of Product:
- Altivar Machine ATV320
- Nominal Output Current:
- 3.0 A
- Volume Of Cooling Air:
- 18.0 m3/h
- Mercury Free:
- Yes
- Height:
- 142.0 mm
- Method Of Access:
- slave CANopen
- Power Dissipation In W:
- fan 40 W 380 V 4 kHz
- Discrete Output Number:
- 3
- Product Certifications:
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Standards:
- IEC 61800-5-1
- Depth:
- 158.0 mm
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Discrete Output Type:
- open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
