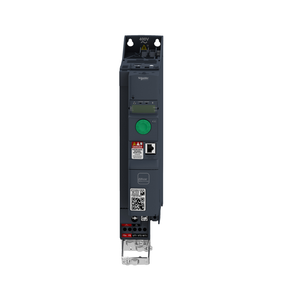

Schneider Electric ATV320U30N4C Atv320 Compact 3Kw - 3Ph - 380/500V

Schneider Electric ATV320U30N4C Atv320 Compact 3Kw - 3Ph - 380/500V

Schneider Electric
SKU:
ATV320U30N4C
|
UPC:
3606480966774
$975.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 3kW / 4hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Additional Information
Nominal Switching Frequency:
4 kHz
Analogue Input Number:
3
Width:
140 mm
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
Analogue Output Number:
1
Power Dissipation In W:
fan 93.0 W 380 V 4 kHz
Line Current:
11.1 A 380 V heavy duty) || 8.4 A 500 V heavy duty)
Product Specific Application:
complex machines
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
With Safety Function Safe Programmable Logic:
FALSE
With Safety Function Safely Limited Position (Slp):
FALSE
China Rohs Regulation:
X
Motor Power Kw:
3.0 kW heavy duty
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Discrete Input Number:
7
Maximum Output Frequency:
0.599 kHz
Braking To Standstill:
by DC injection
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI1512005EN
Variant:
standard version
Ambient Air Transport Temperature:
-25-70 °C
Discrete Input Logic:
positive logic (source) || negative logic (sink)
Ip Degree Of Protection:
IP20
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Range Of Product:
Altivar Machine ATV320
With Safety Function Safe Operating Stop (Sos):
FALSE
Mercury Free:
Yes
Discrete Output Number:
3
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Base Load Current At High Overload:
7.1 A
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Synchronous Motor Control Profile:
vector control without sensor
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Maximum Output Voltage:
500 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operating Position:
vertical +/- 10 degree
Height:
184.0 mm
Net Weight:
2.1 kg
Format Of The Drive:
compact
Brake Chopper Integrated:
TRUE
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Pollution Degree:
2
Mounting Mode:
wall mount
Transient Overtorque:
170-200 % of nominal motor torque
Ambient Air Temperature For Operation:
-10-50 °C without derating || 50-60 °C with derating factor
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
380...500 V - 15...10 %
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Emc Filter:
Class C2 EMC filter integrated
Rohs Exemption Information:
Yes
With Safety Function Safe Stop 1 (Ss1):
TRUE
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
Volume Of Cooling Air:
37.7 m3/h
Standards:
IEC 61800-5-1
With Safety Function Safely Limited Speed (Sls):
TRUE
With Safety Function Safe Position (Sp):
FALSE
Communication Port Protocol:
Modbus serial || CANopen
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Upgradeability:
Upgraded components available
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Apparent Power:
7.3 kVA 500 V heavy duty)
Marking:
CE || ATEX || UL || CSA || EAC || RCM
Environmental Disclosure:
ENVPEP1512005EN
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
With Safety Function Safe Direction (Sdi):
FALSE
Nominal Output Current:
7.1 A
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
With Safety Function Safe Torque Off (Sto):
TRUE
Relative Symmetric Network Frequency Tolerance:
0.05
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
Method Of Access:
slave CANopen
4 Quadrant Operation Possible:
TRUE
Network Frequency:
50-60 Hz
Ambient Air Temperature For Storage:
-25-70 °C
Overvoltage Category:
III
Prospective Line Isc:
5 kA
Depth:
158.0 mm
Product Or Component Type:
variable speed drive
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
Regulation Loop:
adjustable PID regulator
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
